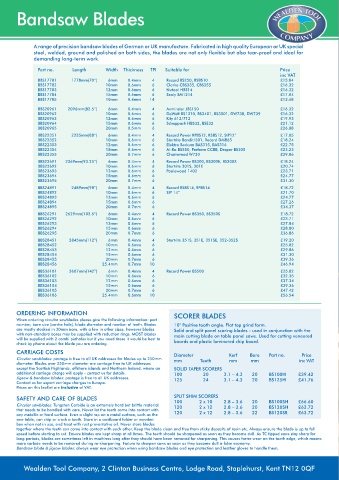

Page 4 - Sawleaflet2022

Bandsaw Blades

A range of precision bandsaw blades of German or UK manufacture. Fabricated in high quality European or UK special
steel, welded, ground and polished on both sides, the blades are not only flexible but also tear-proof and ideal for
demanding long-term work.

Part no. Length Width Thickness TPI Suitable for Price
inc VAT
BBS17781 1778mm(70”) 6mm 0.4mm 4 Record BS250, RSBS10 £15.84 Saw blades
BBS17782 10mm 0.6mm 6 Clarke CBS335, CBS355 £16.32
BBS17783 12mm 0.6mm 6 Nutool HBS14 £16.32
BBS17784 15mm 0.6mm 6 Sealy SM1214 £17.04
BBS17785 10mm 0.4mm 14 £13.68 2022
BBS20961 2096mm(82.5”) 6mm 0.4mm 4 Axminster JBS150 £16.32
BBS20962 10mm 0.6mm 6 DeWalt BS1310, BS3401, BS3501, DW738, DW739 £16.32
BBS20963 12mm 0.6mm 6 Kity 612/712 £19.93
BBS20964 15mm 0.6mm 6 Scheppach HBS32, BSE32 £21.12 Circular - Jigsaw - Bandsaw
BBS20965 20mm 0.5mm 6 £26.88
BBS22351 2235mm(88”) 6mm 0.4mm 4 Record Power RPBS12, RSBS12, SIP12” £17.05
BBS22352 10mm 0.6mm 6 Startrite Bandit/301, Record DMB65 £18.24
BBS22353 12mm 0.6mm 6 Elektra Beckum BAS315, BAS316 £22.75
BBS22354 15mm 0.6mm 6 Al-Ko BS550, Perform CCBB, Draper BS305 £23.23
BBS22355 20mm 0.7mm 6 Charnwood W720 £29.86
BBS23691 2369mm(93.25”) 6mm 0.4mm 4 Record Power BS300, BS300E, BS300X £18.24
BBS23692 10mm 0.6mm 6 Startrite 301S, 301E £20.74
BBS23693 12mm 0.6mm 6 Poolewood 1402 £23.71
BBS23694 15mm 0.6mm 6 £24.77
BBS23695 20mm 0.7mm 6 £31.30
BBS24891 2489mm(98”) 6mm 0.4mm 4 Record RSBS14, RPBS14 £18.72
BBS24892 10mm 0.6mm 6 SIP 14” £21.70
BBS24893 12mm 0.6mm 6 £24.77
BBS24894 15mm 0.6mm 6 £27.26
BBS24895 20mm 0.7mm 6 £34.37
BBS26291 2629mm(103.5”) 6mm 0.4mm 4 Record Power BS350, BS350S £18.72
BBS26292 10mm 0.6mm 6 £23.71
BBS26293 12mm 0.6mm 6 £27.84
BBS26294 15mm 0.6mm 6 £28.80
BBS26295 20mm 0.7mm 6 £36.86
BBS28451 2845mm(112”) 6mm 0.4mm 4 Startrite 351S, 351E, 351SE, 352-352S £19.20
BBS28452 10mm 0.6mm 6 £25.82
BBS28453 12mm 0.6mm 6 £29.86
BBS28454 15mm 0.6mm 6 £31.30
BBS28455 20mm 0.7mm 6 £39.36
BBS28456 25.4mm 0.7mm 10 £46.94
BBS36101 3607mm(142”) 6mm 0.4mm 4 Record Power BS500 £25.82
BBS36102 10mm 0.6mm 6 £32.35
BBS36103 12mm 0.6mm 6 £37.34
BBS36104 15mm 0.6mm 6 £39.36
BBS36105 20mm 0.7mm 6 £47.42
BBS36106 25.4mm 0.6mm 10 £56.54

ORDERING INFORMATION SCORER BLADES
When ordering circular sawblades please give the following information: part
number, bore size (centre hole), blade diameter and number of teeth. Blades 10° Positive tooth angle. Flat top grind form.
are mostly stocked in 30mm bore, with a few in other sizes, however blades Solid and split panel scoring blades - used in conjunction with the
with non-standard bores may be supplied with reduction rings. MOST blades main cutting blade on table panel saws. Used for cutting veneered
will be supplied with 2 combi pinholes but if you need these it would be best to boards and plastic laminated chip board.
check by phone about the blade you are ordering.
CARRIAGE COSTS Diameter Kerf Bore Part no. Price
Circular sawblades: postage is free to all UK addresses for blades up to 250mm mm Teeth mm mm inc VAT
diameter. Blades over 250mm diameter are carriage free to UK addresses
except the Scottish Highlands, offshore islands and Northern Ireland, where an SOLID TAPER SCORERS
additional carriage charge will apply - contact us for details. 100 20 3.1 – 4.3 20 BS100H £39.42
Jigsaw & bandsaw blades: postage is free to all UK addresses. 125 24 3.1 – 4.3 20 BS125H £41.76
Contact us for export carriage charges to Europe.
Prices on this leaflet are inclusive of VAT.

SAFETY AND CARE OF BLADES SPLIT SHIM SCORERS 2.8 – 3.6 20 BS100SH £66.60
100
2 x 10
Circular sawblades: Tungsten Carbide is an extremely hard but brittle material 120 2 x 12 2.8 – 3.6 20 BS120SH £63.72
that needs to be handled with care. Never let the teeth come into contact with
any metallic or hard surface. Even a slight tap on a metal surface, such as the 120 2 x 12 2.8 – 3.6 22 BS120SR £63.72
saw table, can chip or crack a tooth. Store in a cardboard folder or wooden
box when not in use, and treat with rust preventative oil. Never store blades
together where the teeth can come into contact with each other. Keep the blade clean and free from sticky deposits of resin etc. Always ensure the blade is up to full
speed before starting to cut. Ensure blades are kept sharp at all times. The teeth should be sharpened as soon as they become dull. As TC tipped saws stay sharp for tel: 01580 890500
long periods, blades are sometimes left in machines long after they should have been removed for sharpening. This causes faster wear on the tooth edge, which means
more carbide needs to be removed during re-sharpening. Failure to sharpen saws as soon as they become dull is false economy. fax: 01580 890222
Bandsaw blade & jigsaw blades: always wear eye protection when using bandsaw blades and eye protection and leather gloves to handle them.
www.wealdentool.com
sales@wealdentool.com
Wealden Tool Company, 2 Clinton Business Centre, Lodge Road, Staplehurst, Kent TN12 0QF
