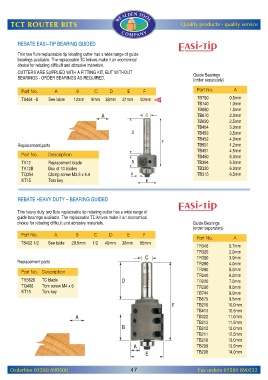

Page 49 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

REBATE EASI–TIP BEARING GUIDED
This two flute replaceable tip rebating cutter has a wide range of guide
bearings available. The replaceable TC knives make it an economical
choice for rebating difficult and abrasive materials.
CUTTERS ARE SUPPLIED WITH A FITTING KIT, BUT WITHOUT Guide Bearings
BEARINGS - ORDER BEARINGS AS REQUIRED.
(order separately)

Part No. A B C D E F Part No. A
T8404 –8 See table 12mm 8mm 38mm 21mm 50mm TB750 0.5mm
TB740 1.0mm
TB680 1.5mm
TB670 2.0mm
TB620 2.5mm
TB454 3.0mm
TB453 3.5mm
TB452 4.0mm
Replacement parts TB501 4.2mm
TB451 4.5mm
Part No. Description
TB450 5.0mm
TK12 Replacement blade TB394 5.5mm
TK12B Box of 10 blades TB320 6.0mm
TQ354 Clamp screw M3.5 x 4.4 TB315 6.5mm
KT15 Torx key

REBATE HEAVY DUTY – BEARING GUIDED

This heavy duty two flute replaceable tip rebating cutter has a wide range of
guide bearings available. The replaceable TC knives make it an economical
choice for rebating difficult and abrasive materials. Guide Bearings
(order separately)
Part No. A B C D E F
Part No. A
T8432 1/2 See table 29.5mm 1/2 40mm 36mm 85mm
TR346 0.7mm
TR320 2.0mm
TR300 3.0mm
Replacement parts
TR280 4.0mm
TR260 5.0mm
Part No. Description
TR240 6.0mm
TK5629 TC blade TR220 7.0mm
TQ408 Torx screw M4 x 6 TR200 8.0mm
KT15 Torx key TB744 9.0mm
TB675 9.5mm
TB216 10.0mm
TB413 10.5mm
TB322 11.0mm
TB213 11.5mm
TB212 12.0mm
TB211 12.5mm
TB210 13.0mm
TB209 13.5mm
TB208 14.0mm
