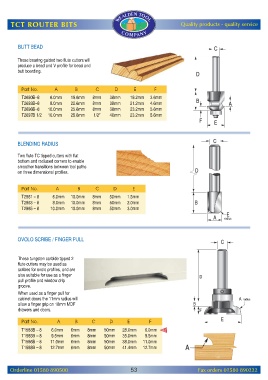

Page 55 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

BUTT BEAD

These bearing guided two flute cutters will
produce a bead and V profile for bead and
butt boarding.

Part No. A B C D E F
T2690B–8 6.0mm 19.6mm 8mm 38mm 19.2mm 3.6mm
T2693B–8 8.0mm 22.6mm 8mm 38mm 21.2mm 4.6mm
T2696B–8 10.0mm 25.6mm 8mm 38mm 23.2mm 5.6mm
T2697B 1/2 10.0mm 25.6mm 1/2" 40mm 23.2mm 5.6mm

BLENDING RADIUS

Two flute TC tipped cutters with flat
bottom and radiused corners to enable
smoother transitions between tool paths
on three dimensional profiles.

Part No. A B C D E
T2961 – 8 6.0mm 10.0mm 8mm 50mm 1.5mm
T2963 – 8 8.0mm 10.0mm 8mm 50mm 2.0mm
T2965 – 8 10.0mm 10.0mm 8mm 50mm 3.0mm

OVOLO SCRIBE / FINGER PULL

These tungsten carbide tipped 2
flute cutters may be used as
scribes for ovolo profiles, and are
also suitable for use as a finger
pull profile and window drip
groove.
When used as a finger pull for
cabinet doors the 11mm radius will
allow a finger grip on 18mm MDF
drawers and doors.

Part No. A B C D E F

T1583B – 8 6.0mm 6mm 8mm 50mm 28.0mm 6.0mm
T1585B – 8 9.5mm 6mm 8mm 50mm 35.0mm 9.5mm
T1586B – 8 11.0mm 6mm 8mm 50mm 38.0mm 11.0mm
T1588B – 8 12.7mm 6mm 8mm 50mm 41.4mm 12.7mm
