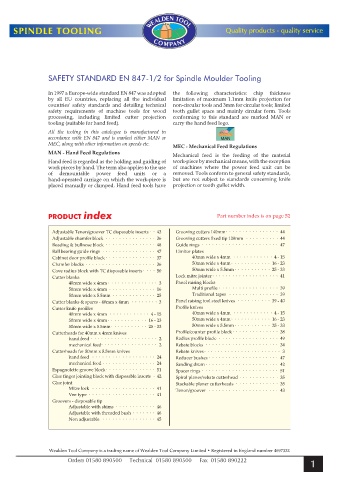

Page 3 - spindle22

SPINDLE TOOLING Quality products - quality service

SAFETY STANDARD EN 847-1/2 for Spindle Moulder Tooling

In 1997 a Europe-wide standard EN 847 was adopted the following characteristics: chip thickness
by all EU countries, replacing all the individual limitation of maximum 1.1mm knife projection for
countries' safety standards and detailing technical non-circular tools and 3mm for circular tools; limited
safety requirements of machine tools for wood tooth gullet space and mainly circular form. Tools
processing, including limited cutter projection conforming to this standard are marked MAN or
tooling (suitable for hand feed). carry the hand feed logo.
All the tooling in this catalogue is manufactured in
accordance with EN 847 and is marked either MAN or
MEC, along with other information on speeds etc.
MEC - Mechanical Feed Regulations
MAN - Hand Feed Regulations
Mechanical feed is the feeding of the material
Hand feed is regarded as the holding and guiding of work-piece by mechanical means, with the exception
work pieces by hand. The term also applies to the use of machines where the power feed unit can be
of demountable power feed units or a removed. Tools conform to general safety standards,
hand-operated carriage on which the work-piece is but are not subject to standards concerning knife
placed manually or clamped. Hand feed tools have projection or tooth gullet width.

PRODUCT index Part number index is on page 52

Adjustable Tenon/groover TC disposable inserts · · 43 Grooving cutters 140mm················ 44
Adjustable chamfer block ··············· 36 Grooving cutters fixed tip 120mm ·········· 44
Beading & bullnose block ··············· 48 Guide rings ······················· 47
Ball bearing guide rings ················ 47 Limitor plates
Cabinet door profile block ··············· 37 40mm wide x 4mm ············ 4 - 15
Chamfer blocks ····················· 36 50mm wide x 4mm ············ 16 - 23
Cove radius block with TC disposable inserts ···· 50 50mm wide x 5.5mm ··········· 25 - 33
Cutter blanks Lock mitre jointer ···················· 41
40mm wide x 4mm ··············· 3 Panel raising blocks
50mm wide x 4mm ·············· 16 Multi profile ·················· 39
50mm wide x 5.5mm ············· 25 Traditional taper ··············· 39
Cutter blanks & spares - 40mm x 4mm ········ 3 Panel raising tool steel knives ·········· 39 - 40
Cutter knife profiles Profile knives
40mm wide x 4mm ············ 4 - 15 40mm wide x 4mm ············ 4 - 15
50mm wide x 4mm ············ 16 - 23 50mm wide x 4mm ············ 16 - 23
50mm wide x 5.5mm ··········· 25 - 33 50mm wide x 5.5mm ··········· 25 - 33
Cutterheads for 40mm x 4mm knives Profile/counter profile block ·············· 38
hand feed ···················· 2 Radius profile block··················· 49
mechanical feed················· 2 Rebate blocks ······················ 34
Cutterheads for 50mm x 5.5mm knives Rebate knives ······················· 3
hand feed ··················· 24 Reducer bushes ····················· 47
mechanical feed ················ 24 Sanding drum ······················ 42
Espagnolette groove block ··············· 51 Spacer rings ······················· 51
Glue finger jointing block with disposable inserts · 42 Spiral planer/rebate cutterhead ············ 35
Glue joint Stackable planer cutterheads ············· 35
Mitre lock ··················· 41 Tenon/groover ····················· 43
Vee type ···················· 41
Groovers - disposable tip
Adjustable with shims ············ 46
Adjustable with threaded bush ······· 46
Non adjustable ················ 45

Wealden Tool Company is a trading name of Wealden Tool Company Limited • Registered in England number 4697332
Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
1
