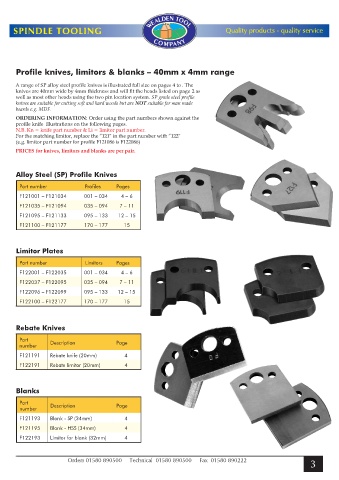

SPINDLE TOOLING Quality products - quality service

Profile knives, limitors & blanks – 40mm x 4mm range

A range of SP alloy steel profile knives is illustrated full size on pages 4 to . The
knives are 40mm wide by 4mm thickness and will fit the heads listed on page 2 as
well as most other heads using the two pin location system. SP grade steel profile
knives are suitable for cutting soft and hard woods but are NOT suitable for man made
boards e.g. MDF.
ORDERING INFORMATION: Order using the part numbers shown against the
profile knife illustrations on the following pages.
N.B. Kn = knife part number & Li = limitor part number.
For the matching limitor, replace the “121” in the part number with “122”
(e.g. limitor part number for profile F121086 is F122086)
PRICES for knives, limitors and blanks are per pair.

Alloy Steel (SP) Profile Knives
Part number Profiles Pages
F121001 – F121034 001 – 034 4 – 6

F121035 – F121094 035 – 094 7 – 11
F121095 – F121133 095 – 133 12 – 15
F121100 – F121177 170 – 177 15

Limitor Plates

Part number Limitors Pages
F122001 – F122035 001 – 034 4 – 6
F122037 – F122095 035 – 094 7 – 11

F122096 – F122099 095 – 133 12 – 15
F122100 – F122177 170 – 177 15

Rebate Knives

Part Description Page
number

F121191 Rebate knife (20mm) 4
F122191 Rebate limitor (20mm) 4

Blanks

Part
number Description Page
F121193 Blank - SP (34mm) 4
F121195 Blank - HSS (34mm) 4

F122193 Limitor for blank (32mm) 4

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
3
