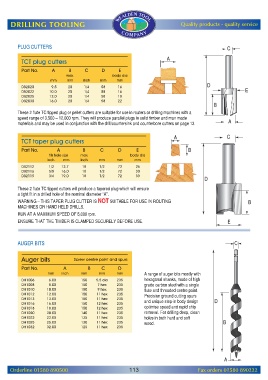

Page 115 - Rout2021

WEALDEN TOOL
DRILLING TOOLING Quality products - quality service
COM PAN Y

PLUG CUTTERS

TCT plug cutters

Part No. A B C D E
max. body dia
mm mm inch mm mm
DB2020 9.5 20 1/4 58 16
DB2022 10.0 20 1/4 58 16
DB2025 12.0 20 1/4 58 18
DB2030 16.0 20 1/4 58 22

These 2 flute TC tipped plug or pellet cutters are suitable for use in routers or drilling machines with a
speed range of 3,500 – 12,000 rpm. They will produce parallel plugs in solid timber and man made
materials and may be used in conjunction with the drill/countersink and counterbore cutters on page 13.

TCT
TCT taper plug cutterstaper plug cutters
Part A A B B C C D D E E
Part No.No.
body diadia
fits hole sizehole size
max
fits max body
mm
i inchnch mm inch mm mm mm
mm
mm
mm
inch
DB2112 1/2 12.7 18 1/2 72 26
1/2
26
1/2
18
DB2112
12.7
72
30
18
5/8
1/2
16.0
DB2116 5/8 16.0 18 1/2 72 30
DB2116
72
DB2119
19.0
3/4
18
1/2
DB2119 3/4 19.0 18 1/2 72 33
33
72
These 2 flute TC tipped cutters will produce a tapered plug which will ensure
a tight fit in a drilled hole of the nominal diameter “A”.
WARNING – THIS TAPER PLUG CUTTER IS NOT SUITABLE FOR USE IN ROUTING
MACHINES OR HAND HELD DRILLS.
RUN AT A MAXIMUM SPEED OF 5,000 rpm.
ENSURE THAT THE TIMBER IS CLAMPED SECURELY BEFORE USE.
AUGER BITS
Carpe drillsbits
Auger Screw
Centre point and 2 spurscentre point and spurs
Part No.No.
Part A A B B C CD D
mm
mm
mm
inch
mm inch mm mm mm A range of auger bits mostly with
mm
DH1006 6.00 150 5.5 dia 235 hexagonal shanks, made of high
DH1008 8.00 150 7 hex 235 grade carbon steel with a single
DH1010 10.00 150 9 hex 235 flute and threaded centre point.
DH1012 12.00 150 11 hex 235 Precision ground cutting spurs
DH1013 13.00 150 11 hex 235 and unique step-in body design
DH1016 16.00 150 12 hex 235
optimise speed and rapid chip
DH1018 18.00 150 12 hex 235
DH1020 20.00 140 11 hex 235 removal. For drilling deep, clean
DH1022 22.00 135 11 hex 235 holes in both hard and soft
DH1025 25.00 130 11 hex 235 wood.
DH1032 32.00 125 11 hex 235
Orderline 01580 890500 113 Fax orders 01580 890222
