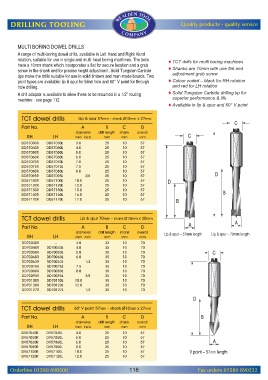

DRILLING TOOLING Quality products - quality service
COM PAN Y

MULTI BORING DOWEL DRILLS
A range of multi-boring dowel drills, available in Left Hand and Right Hand
rotation, suitable for use in single and multi-head boring machines. The tools TCT drills for multi boring machines
have a 10mm shank which incorporates a flat for secure location and a grub
screw in the shank end for precise height adjustment. Solid Tungsten Carbide Shanks are 10mm with one flat and
adjustment grub screw
tips make the drills suitable for use in solid timbers and man-made boards. Two
point types are available: lip & spur for blind hole and 60° V point for through Colour coded – black for RH rotation
hole drilling. and red for LH rotation
A drill adaptor is available to allow these to be mounted in a 1/2" routing Solid Tungsten Carbide drilling tip for
machine - see page 112 superior performance & life
Available in lip & spur and 60° V point

TCT dowel drills Lip & spur 57mm – shank Ø10mm x27mm

Part No. A B C D
diameter drill length shank overall
RH LH mm inch mm mm mm
DD57030R DD57030L 3.0 25 10 57
DD57040R DD57040L 4.0 25 10 57
DD57050R DD57050L 5.0 25 10 57
DD57060R DD57060L 6.0 25 10 57
DD57070R DD57070L 7.0 25 10 57
DD57075R DD57075L 7.5 25 10 57
DD57080R DD57080L 8.0 25 10 57
DD57095R DD57095L 3/8 25 10 57
DD57100R DD57100L 10.0 25 10 57
DD57120R DD57120L 12.0 25 10 57
DD57150R DD57150L 15.0 25 10 57
DD57160R DD57160L 16.0 25 10 57
DD57170R DD57170L 17.0 25 10 57

TCT dowel drills Lip & spur 70mm – shank Ø10mm x30mm
Part No. A B C D
diameter drill length shank overall
RH LH mm inch mm mm mm Lip & spur – 57mm length Lip & spur – 70mm length
DD70030R – 3.0 32 10 70
DD70040R DD70040L 4.0 35 10 70
DD70050R DD70050L 5.0 35 10 70
DD70060R DD70060L 6.0 35 10 70
DD70063R DD70063L 1/4 35 10 70
DD70075R DD70075L 7.5 35 10 70
DD70080R DD70080L 8.0 35 10 70
DD70095R DD70095L 3/8 35 10 70
DD70100R DD70100L 10.0 35 10 70
DD70120R DD70120L 12.0 35 10 70
DD70127R DD70127L 1/2 35 10 70

TCT dowel drills 60° V point 57mm – shank Ø10mm x27mm
Part No. A B C D
diameter drill length shank overall
RH LH mm inch mm mm mm
DV57040R DV57040L 4.0 25 10 57
DV57050R DV57050L 5.0 25 10 57
DV57060R DV57060L 6.0 25 10 57
DV57080R DV57080L 8.0 25 10 57
DV57100R DV57100L 10.0 25 10 57 V point – 57mm length
DV57120R DV57120L 12.0 25 10 57
