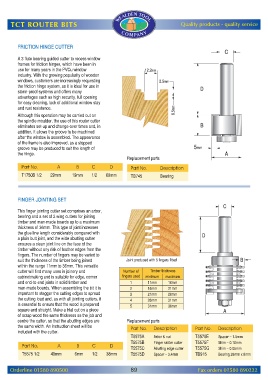

Page 91 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

FRICTION HINGE CUTTER

A 3 flute bearing guided cutter to recess window
frames for friction hinges, which have been in
use for many years in the PVCu window
industry. With the growing popularity of wooden
windows, customers are increasingly requesting
the friction hinge system, as it is ideal for use in
storm-proof systems and offers many
advantages such as high security, full opening
for easy cleaning, lack of additional window stay
and rust resistance.
Although this operation may be carried out on
the spindle moulder, the use of this router cutter
eliminates set-up and change-over times and, in
addition, it allows the groove to be machined
after the window is assembled. The appearance
of the frame is also improved, as a stopped
groove may be produced to suit the length of
the hinge.
Replacement parts

Part No. A B C D Part No. Description
T1750B 1/2 29mm 19mm 1/2 60mm TB745 Bearing

FINGER JOINTING SET

This finger jointing cutter set comprises an arbor,
bearing and a set of 2 wing cutters for joining
timber and man-made boards up to a maximum
thickness of 36mm. This type of joint increases
the glue line length considerably compared with
a plain butt joint, and the wide abutting cutter
ensures a clean joint line on the face of the
timber without any risk of feather edges from the
fingers. The number of fingers may be varied to
suit the thickness of the timber being joined Joint produced with 5 fingers fitted
within the range 11mm to 36mm. This versatile
cutter will find many uses in joinery and Number of Timber thickness
cabinetmaking and is suitable for edge, corner fingers used minimum maximum
and end-to-end joints in solid timber and 1 11mm 16mm
man-made boards. When assembling the bit it is 2 16mm 21mm
important to stagger the cutting edges to spread 3 21mm 26mm
the cutting load and, as with all jointing cutters, it 4 26mm 31mm
is essential to ensure that the wood is prepared 5 31mm 36mm
square and straight. Make a trial cut on a piece
of scrap wood the same thickness as the job and
centre the cutter, so that the abutting edges are Replacement parts
the same width. An instruction sheet will be
Part No. Description Part No. Description
included with the cutter.
T5575A Arbor & nut T5575E Spacer – 1.5mm
T5575B Finger slotter cutter T5575F Shim – 0.10mm
Part No. A B C D
T5575C Abutting edge cutter T5575G Shim – 0.05mm
T5575 1/2 40mm 6mm 1/2 38mm T5575D Spacer – 3.4mm TB915 Bearing 28mm x 8mm
