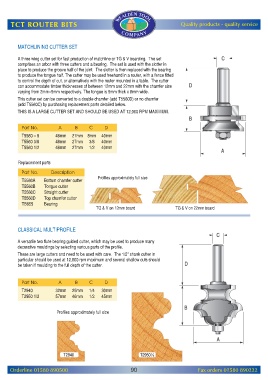

Page 92 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

MATCHLINING CUTTER SET

A three wing cutter set for fast production of matchline or TG & V boarding. The set
comprises an arbor with three cutters and a bearing. The set is used with the slotter in
place to produce the groove half of the joint. The slotter is then replaced with the bearing
to produce the tongue half. The cutter may be used freehand in a router, with a fence fitted
to control the depth of cut, or alternatively with the router mounted in a table. The cutter
can accommodate timber thicknesses of between 12mm and 22mm with the chamfer size
varying from 2mm–5mm respectively. The tongue is 5mm thick x 8mm wide.
This cutter set can be converted to a double chamfer (add T5560D) or no chamfer
(add T5560C) by purchasing replacement parts detailed below.
THIS IS A LARGE CUTTER SET AND SHOULD BE USED AT 12,000 RPM MAXIMUM.

Part No. A B C D
T5560 – 8 48mm 27mm 8mm 40mm
T5560 3/8 48mm 27mm 3/8 40mm
T5560 1/2 48mm 27mm 1/2 40mm

Replacement parts

Part No. Description
Profiles approximately full size
T5560A Bottom chamfer cutter
T5560B Tongue cutter
T5560C Straight cutter
T5560D Top chamfer cutter
TB655 Bearing
TG&Von 12mm board TG&Von 22mm board

CLASSICAL MULTIPROFILE

A versatile two flute bearing guided cutter, which may be used to produce many
decorative mouldings by selecting various parts of the profile.
These are large cutters and need to be used with care. The 1/2" shank cutter in
particular should be used at 12,000 rpm maximum and several shallow cuts should
be taken if moulding to the full depth of the cutter.

Part No. A B C D
T2940 32mm 25mm 1/4 30mm
T2950 1/2 57mm 46mm 1/2 45mm

Profiles approximately full size
