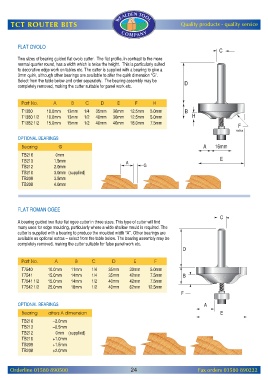

Page 26 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

FLAT OVOLO

Two sizes of bearing guided flat ovolo cutter. The flat profile, in contrast to the more
normal quarter round, has a width which is twice the height. This is particularly suited
to decorative edge work on tables etc. The cutter is supplied with a bearing to give a
3mm quirk, although other bearings are available to alter the quirk dimension “G”.
Select from the table below and order separately. The bearing assembly may be
completely removed, making the cutter suitable for panel work etc.

Part No. A B C D E F H
T1380 10.0mm 13mm 1/4 35mm 36mm 12.5mm 5.0mm
T1380 1/2 10.0mm 13mm 1/2 40mm 36mm 12.5mm 5.0mm
T1382 1/2 15.0mm 15mm 1/2 40mm 46mm 18.0mm 7.5mm

OPTIONAL BEARINGS
Bearing G
TB216 0mm
TB213 1.5mm
TB212 2.0mm
TB210 3.0mm (supplied)
TB209 3.5mm
TB208 4.0mm

FLAT ROMAN OGEE

A bearing guided two flute flat ogee cutter in three sizes. This type of cutter will find
many uses for edge moulding, particularly where a wide shallow mould is required. The
cutter is supplied with a bearing to produce the moulded width “A”. Other bearings are
available as optional extras – select from the table below. The bearing assembly may be
completely removed, making the cutter suitable for false panel work etc.

Part No. A B C D E F
T7540 10.0mm 11mm 1/4 35mm 30mm 5.0mm
T7541 15.0mm 14mm 1/4 35mm 42mm 7.5mm
T7541 1/2 15.0mm 14mm 1/2 40mm 42mm 7.5mm
T7542 1/2 25.0mm 18mm 1/2 40mm 62mm 12.5mm

OPTIONAL BEARINGS
Bearing alters A dimension
TB216 –2.0mm
TB213 –0.5mm
TB212 0mm (supplied)
TB210 +1.0mm
TB209 +1.5mm
TB208 +2.0mm
