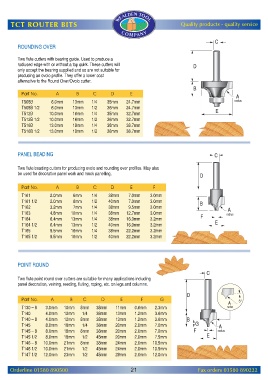

Page 23 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

ROUNDING OVER

Two flute cutters with bearing guide. Used to produce a
radiused edge with or without a top quirk. These cutters will
only accept the bearing supplied and so are not suitable for
producing an ovolo profile. They offer a lower cost
alternative to the Round Over/Ovolo cutter.

Part No. A B C D E
T508B 6.0mm 13mm 1/4 35mm 24.7mm
T508B 1/2 6.0mm 13mm 1/2 36mm 24.7mm
T512B 10.0mm 16mm 1/4 35mm 32.7mm
T512B 1/2 10.0mm 16mm 1/2 36mm 32.7mm
T516B 13.0mm 19mm 1/4 38mm 38.7mm
T516B 1/2 13.0mm 19mm 1/2 36mm 38.7mm

PANEL BEADING

Two flute beading cutters for producing ovolo and rounding over profiles. May also
be used for decorative panel work and mock panelling.

Part No. A B C D E F

T161 2.0mm 6mm 1/4 38mm 7.0mm 3.0mm
T161 1/2 2.0mm 6mm 1/2 40mm 7.0mm 3.0mm
T162 3.2mm 7mm 1/4 38mm 9.5mm 3.0mm
T163 4.8mm 10mm 1/4 38mm 12.7mm 3.0mm
T164 6.4mm 13mm 1/4 38mm 16.0mm 3.2mm
T164 1/2 6.4mm 13mm 1/2 40mm 16.0mm 3.2mm
T165 9.5mm 16mm 1/4 38mm 22.2mm 3.2mm
T165 1/2 9.5mm 16mm 1/2 40mm 22.2mm 3.2mm

POINT ROUND

Two flute point round over cutters are suitable for many applications including
panel decoration, veining, reeding, fluting, roping, etc. on legs and columns.

Part No. A B C D E F G

T130 – 8 3.0mm 10mm 8mm 38mm 11mm 0.6mm 2.3mm
T140 4.0mm 12mm 1/4 38mm 13mm 1.2mm 3.6mm
T140 – 8 4.0mm 12mm 8mm 38mm 13mm 1.2mm 3.6mm
T145 8.0mm 18mm 1/4 38mm 20mm 2.0mm 7.0mm
T145 – 8 8.0mm 18mm 8mm 38mm 20mm 2.0mm 7.0mm
T145 1/2 8.0mm 18mm 1/2 45mm 20mm 2.0mm 7.5mm
T146 – 8 10.0mm 21mm 8mm 38mm 24mm 2.0mm 10.5mm
T146 1/2 10.0mm 21mm 1/2 45mm 24mm 2.0mm 10.5mm
T147 1/2 12.0mm 23mm 1/2 45mm 28mm 2.0mm 12.0mm

Orderline 01580 890500 21 Fax orders 01580 890222
