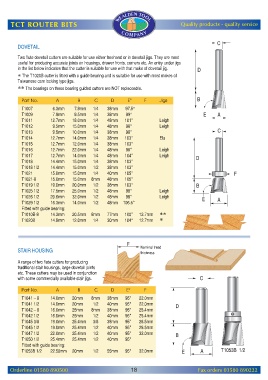

Page 20 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

DOVETAIL

Two flute dovetail cutters are suitable for use either freehand or in dovetail jigs. They are most
useful for producing accurate joints on housings, drawer fronts, corners etc. An entry under jigs
in the list below indicates that the cutter is suitable for use with that make of dovetail jig.
The T1020B cutter is fitted with a guide bearing and is suitable for use with most makes of
Taiwanese cam locking type jigs.
The bearings on these bearing guided cutters are NOT replaceable.

Part No. A B C D E° F Jigs

T1007 6.3mm 7.9mm 1/4 38mm 97.5
T1009 7.9mm 9.5mm 1/4 38mm 99
T1011 12.7mm 18.0mm 1/4 48mm 101° Leigh
T1012 9.5mm 15.0mm 1/4 48mm 98° Leigh
T1013 9.5mm 10.0mm 1/4 38mm 98°
T1014 12.7mm 14.0mm 1/4 38mm 103° Elu
T1015 12.7mm 12.0mm 1/4 38mm 103°
T1016 12.7mm 22.0mm 1/4 48mm 98° Leigh
T1017 12.7mm 14.0mm 1/4 48mm 104° Leigh
T1018 14.4mm 15.0mm 1/4 38mm 103°
T1018 1/2 14.4mm 15.0mm 1/2 38mm 103°
T1021 15.0mm 15.0mm 1/4 40mm 105°
T1021-8 15.0mm 15.0mm 8mm 48mm 105°
T1019 1/2 19.0mm 20.0mm 1/2 38mm 103°
T1025 1/2 17.5mm 25.0mm 1/2 48mm 98° Leigh
T1026 1/2 20.6mm 32.0mm 1/2 48mm 98° Leigh
T1029 1/2 16.3mm 14.0mm 1/2 48mm 106.5°
Fitted with guide bearing:
T1010B-8 14.3mm 20.5mm 8mm 77mm 100° 12.7mm
T1020B 14.9mm 12.0mm 1/4 30mm 104 12.7mm

Nominal tread
STAIR HOUSING
thickness
A range of two flute cutters for producing
traditional stair housings, large dovetail joints
etc. These cutters may be used in conjunction
with some commercially available stair jigs.

Part No. A B C D E° F
T1041 – 8 14.0mm 20mm 8mm 38mm 95° 22.0mm
T1041 1/2 14.0mm 20mm 1/2 40mm 95° 22.0mm
T1042 – 8 16.0mm 25mm 8mm 38mm 95° 25.4mm
T1042 1/2 16.0mm 25mm 1/2 40mm 95° 25.4mm
T1045 3/8 19.0mm 25.4mm 3/8 38mm 95° 28.5mm
T1045 1/2 19.0mm 25.4mm 1/2 40mm 95° 28.5mm
T1047 1/2 22.0mm 25.4mm 1/2 40mm 95° 32.0mm
T1050 1/2 25.4mm 25.4mm 1/2 40mm 95°
Fitted with guide bearing:
T1053B 1/2 22.50mm 20mm 1/2 55mm 95° 32.0mm
