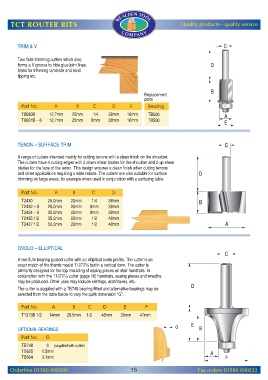

Page 17 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

TRIM & V

Two flute trimming cutters which also
forms a V groove to hide glue joint lines.
Used for trimming laminate and solid
lipping etc.

Replacement
parts
Part No. A B C D E Bearing
T8060B 12.7mm 25mm 1/4 38mm 16mm TB500
T8061B – 8 12.7mm 25mm 8mm 38mm 16mm TB500

TENON – SURFACE TRIM

A range of cutters intended mainly for cutting tenons with a clean finish on the shoulder.
The cutters have 4 cutting edges with 2 down-shear blades for the shoulder and 2 up-shear
blades for the face of the tenon. This design ensures a clean finish when cutting tenons
and other applications requiring a wide rebate. The cutters are also suitable for surface
trimming on large areas, for example when used in conjunction with a surfacing table.

Part No. A B C D
T2430 25.0mm 20mm 1/4 38mm
T2432 – 8 25.0mm 20mm 8mm 38mm
T2434 – 8 35.0mm 20mm 8mm 38mm
T2435 1/2 35.0mm 20mm 1/2 48mm
T2437 1/2 50.0mm 20mm 1/2 48mm

OVOLO – ELLIPTICAL

A two flute bearing guided cutter with an elliptical ovolo profile. The cutter is an
exact match of the thumb mould T1372½ but in a vertical form. The cutter is
primarily designed for the top moulding of easing pieces on stair handrails. In
conjunction with the T1372½ cutter (page 16) handrails, easing pieces and wreaths
may be produced. Other uses may include skirtings, architraves, etc.

The cutter is supplied with a TB748 bearing fitted and alternative bearings may be
selected from the table below to vary the quirk dimension “G”.

Part No. A B C D E F

T1375B 1/2 14mm 28.5mm 1/2 48mm 36mm 47mm

OPTIONAL BEARINGS
Part No. G
TB748 0 (supplied with cutter)
TB625 1.5mm
TB504 3.1mm
