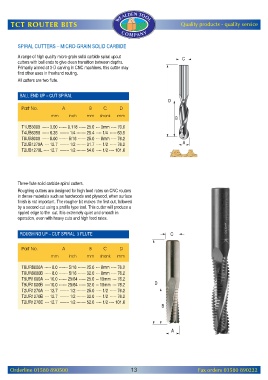

Page 15 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

SPIRAL CUTTERS – MICRO-GRAIN SOLID CARBIDE

A range of high quality micro-grain solid carbide spiral upcut
cutters with ball ends to give clean transition between depths.
Primarily aimed at 3-D carving in CNC machines, this cutter may
find other uses in freehand routing.
All cutters are two flute.

BALL END UP – CUT SPIRAL

Part No. A B C D
mm inch mm shank mm

T1UB3000 ----- 3.00 ------ 0.118 ----- 25.0 --- 3mm ---- 70.0
T4UB6350 ----- 6.35 ------- 1/4 ------- 25.4 ---- 1/4 ----- 63.5
T8UB8000 ----- 8.00 ------- 5/16 ------ 25.0 --- 8mm ---- 76.2
T2UB1270A --- 12.7 ------- 1/2 ------- 31.7 ---- 1/2 ----- 76.2
T2UB1270L ---- 12.7 ------- 1/2 ------- 54.0 ---- 1/2 ---- 101.6

Three-flute solid carbide spiral cutters.
Roughing cutters are designed for high feed rates on CNC routers
in dense materials such as hardwoods and plywood, when surface
finish is not important. The rougher bit makes the first cut, followed
by a second cut using a profile type tool. This cutter will produce a
rippled edge to the cut. It is extremely quiet and smooth in
operation, even with heavy cuts and high feed rates.

ROUGHING UP – CUT SPIRAL 3 FLUTE

Part No. A B C D
mm inch mm shank mm

T8UR8000A ----- 8.0 ------- 5/16 ------ 25.0 --- 8mm ---- 76.2
T8UR8000B ----- 8.0 ------- 5/16 ------ 32.0 --- 8mm ---- 76.2
T9UR1000A --- 10.0 ------ 25/64 ----- 25.0 -- 10mm --- 76.2
T9UR1000B ----10.0 ------ 25/64 ----- 32.0 -- 10mm --- 76.2
T2UR1270A --- 12.7 ------- 1/2 ------- 25.0 ---- 1/2 ----- 76.2
T2UR1270B --- 12.7 ------- 1/2 ------- 32.0 ---- 1/2 ----- 76.2
T2UR1270E --- 12.7 ------- 1/2 ------- 52.0 ---- 1/2 ---- 101.6
