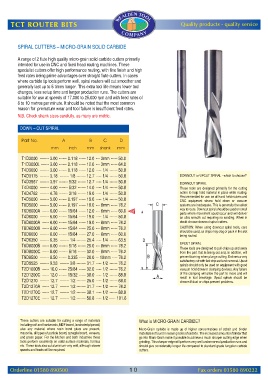

SPIRAL CUTTERS – MICRO-GRAIN SOLID CARBIDE

A range of 2 flute high quality micro-grain solid carbide cutters primarily
intended for use in CNC and fixed head routing machines. These
specialist cutters offer high performance routing, with fine finish and high
feed rates being prime advantages over straight flute cutters. In cases
where carbide tip tools perform well, spiral routers will cut smoother and
generally last up to 5 times longer. This extra tool life means fewer tool
changes, less setup time and longer production runs. The cutters are
suitable for use at speeds of 17,000 to 25,000 rpm and with feed rates of
6 to 10 metres per minute. It should be noted that the most common
reason for premature wear and tool failure is insufficient feed rates.
N.B. Check shank sizes carefully, as many are metric.

DOWN – CUT SPIRAL

Part No. A B C D
mm inch mm shank mm

T1D3000 ------- 3.00 ------ 0.118 ----- 12.0 --- 3mm ----- 50.0
T1D3000L ------ 3.00 ------ 0.118 ----- 12.0 --- 3mm ----- 64.0
T4D3000 ------- 3.00 ------ 0.118 ----- 12.0 ---- 1/4 ------ 50.8
T4D3175 ------- 3.18 ------- 1/8 ------- 12.7 ---- 1/4 ------ 50.8 DOWNCUT or UPCUT SPIRAL - which to choose?
T4D3967 ------- 3.97 ------- 5/32 ------ 12.7 ---- 1/4 ------ 50.8 DOWNCUT SPIRAL
T4D4000 ------- 4.00 ------- 5/32 ------ 14.0 ---- 1/4 ------ 50.8 These tools are designed primarily for the cutting
T4D4762 ------- 4.76 ------- 3/16 ------ 19.0 ---- 1/4 ------ 50.8 action to help hold material in place while routing.
Recommended for use on all hand held routers and
T4D5000 ------- 5.00 ------ 0.197 ----- 19.0 ---- 1/4 ------ 50.8 CNC equipment where hold down or vacuum
T8D5000 ------- 5.00 ------ 0.197 ----- 19.0 --- 8mm ----- 76.2 systems are inadequate. This is generally the safest
T6D6000A ----- 6.00 ------ 15/64 ----- 12.0 --- 6mm ----- 60.0 waytoroute.Downcutspiralshouldbeusedonsmall
parts where movement could occur and will deliver
T4D6000 ------- 6.00 ------ 15/64 ----- 19.0 ---- 1/4 ------ 50.8 an ultra smooth cut requiring no sanding. When in
T8D6000A ----- 6.00 ------ 15/64 ----- 19.0 --- 8mm ----- 76.2 doubt choose downcut spiral cutters.
T8D6000B ----- 6.00 ------ 15/64 ----- 25.0 --- 8mm ----- 76.2 CAUTION: When using downcut spiral tools, care
should be used, as chips may clog or pack in the slot
T6D6000 ------- 6.00 ------ 15/64 ----- 27.0 --- 6mm ----- 60.0 being routed.
T4D6350 ------- 6.35 ------- 1/4 ------- 25.4 ---- 1/4 ------ 63.5
UPCUT SPIRAL
T8D8000B ----- 8.00 ------- 5/16 ------ 25.0 --- 8mm ----- 76.2
These tools are designed to pull chips up and away
T8D8000C ----- 8.00 ------- 5/16 ------ 32.0 --- 8mm ----- 76.2 from the part that is being cut and, in addition, will
T9D8500 ------- 8.50 ------ 0.335 ----- 20.0 -- 10mm ---- 76.2 prevent burning when plunge cutting. Delivers a very
satisfactorycut with fastchip exitand removal. Upcut
T2D9525 ------- 9.53 ------- 3/8 ------- 31.7 ---- 1/2 ------ 76.2 spirals should only be used on equipment with good
T2D1000B ----- 10.0 ------ 25/64 ----- 32.0 ---- 1/2 ------ 76.2 vacuum hold down or clamping devices. Any failure
T2D1200C ----- 12.0 ------ 15/32 ----- 38.0 ---- 1/2 ------ 88.9 of the clamping will allow the part to move and will
result in tool breakage. Upcut spirals should be
T2D1270 ------- 12.7 ------- 1/2 ------- 25.0 ---- 1/2 ------ 68.0 chosen if dust or chips present problems.
T2D1270A ----- 12.7 ------- 1/2 ------- 31.7 ---- 1/2 ------ 76.2
T2D1270C ----- 12.7 ------- 1/2 ------- 38.1 ---- 1/2 ------ 88.9
T2D1270E ----- 12.7 ------- 1/2 ------- 50.8 ---- 1/2 ----- 101.6

These cutters are suitable for cutting a range of materials What is MICRO-GRAIN CARBIDE?
including softand hardwoods, MDF board, laminated plywood,
also any material where resin bond glues are present, Micro-Grain carbide is made up of higher concentrations of cobalt and binder
masonite, all types of particle board, synegite board, veneers, materialsnot found in lesser grades of carbide. The increased amounts of binder that
and press paper. For the kitchen and bath industries these go into Micro-Grain make it possible to achieve a much sharper cutting edge when
tools perform excellently on solid surface materials, formica grinding. This sharper edge will perform very well under normal production runs and
etc. These tools also cut aluminium very well, although slower should give considerably longer life compared to standard grade tungsten carbide
speeds and feeds will be required. cutters.
