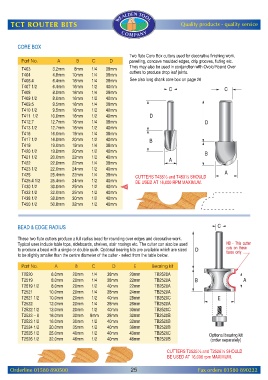

Page 27 - Router Catalogue 2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

CORE BOX

Two flute Core Box cutters used for decorative finishing work,
Part No. A B C D panelling, concave moulded edges, drip grooves, fluting etc.
They may also be used in conjunction with Ovolo/Round Over
T403 3.2mm 8mm 1/4 38mm
cutters to produce drop leaf joints.
T404 4.8mm 10mm 1/4 38mm
T406.4 6.4mm 16mm 1/4 38mm See also long shank core box on page 26
T407 1/2 6.4mm 16mm 1/2 40mm
T408 8.0mm 16mm 1/4 38mm
T409 1/2 8.0mm 16mm 1/2 40mm
T409.5 9.5mm 16mm 1/4 38mm
T410 1/2 9.5mm 16mm 1/2 40mm
T411 1/2 10.0mm 16mm 1/2 40mm
T412.7 12.7mm 16mm 1/4 38mm
T413 1/2 12.7mm 16mm 1/2 40mm
T416 16.0mm 19mm 1/4 38mm
T417 1/2 16.0mm 20mm 1/2 40mm
T419 19.0mm 19mm 1/4 38mm
T420 1/2 19.0mm 20mm 1/2 40mm
T421 1/2 20.0mm 22mm 1/2 40mm
T422 22.0mm 22mm 1/4 38mm
T423 1/2 22.0mm 24mm 1/2 40mm
T425 25.4mm 22mm 1/4 38mm
CUTTERS T438½ and T450½ SHOULD
T425.4 1/2 25.4mm 24mm 1/2 40mm BE USED AT 16,000 RPM MAXIMUM.
T430 1/2 30.0mm 25mm 1/2 40mm
T432 1/2 32.0mm 25mm 1/2 40mm
T438 1/2 38.0mm 30mm 1/2 40mm
T450 1/2 50.8mm 32mm 1/2 40mm

BEAD & EDGE RADIUS

These two flute cutters produce a full radius bead for rounding over edges and decorative work.
Typical uses include table tops, sideboards, shelves, stair nosings etc. The cutter can also be used
to produce a bead with a single or double quirk. Optional bearing kits are available which are sized
to be slightly smaller than the centre diameter of the cutter - select from the table below.

Part No. A B C D E Bearing kit
T2520 6.0mm 20mm 1/4 38mm 20mm TB2520A
T2519 8.0mm 20mm 1/4 38mm 22mm TB2520A
T2519 1/2 8.0mm 20mm 1/2 40mm 22mm TB2520A
T2521 10.0mm 20mm 1/4 38mm 24mm TB2520A
T2521 1/2 10.0mm 20mm 1/2 40mm 28mm TB2520C
T2522 12.0mm 20mm 1/4 38mm 26mm TB2520A
T2522 1/2 12.0mm 20mm 1/2 40mm 30mm TB2520C
T2523 – 8 16.0mm 30mm 8mm 38mm 32mm TB2520B
T2523 1/2 16.0mm 30mm 1/2 40mm 32mm TB2520B
T2524 1/2 20.0mm 35mm 1/2 40mm 36mm TB2520B
T2525 1/2 25.0mm 40mm 1/2 40mm 43mm TB2520C
Optional bearing kit
T2526 1/2 32.0mm 46mm 1/2 40mm 48mm TB2520B (order separately)

CUTTERS T2525½ and T2526½ SHOULD
BE USED AT 16,000 rpm MAXIMUM.
