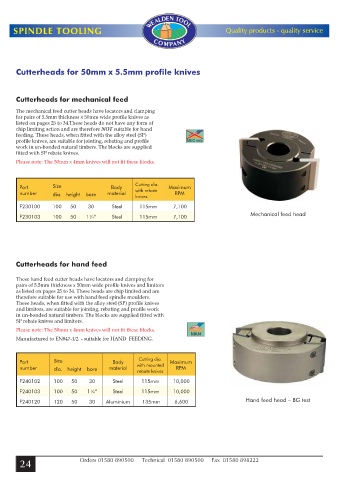

Page 26 - spindle22

SPINDLE TOOLING Quality products - quality service

Cutterheads for 50mm x 5.5mm profile knives

Cutterheads for mechanical feed

The mechanical feed cutter heads have locators and clamping
for pairs of 5.5mm thickness x 50mm wide profile knives as
listed on pages 25 to 34.These heads do not have any form of
chip limiting action and are therefore NOT suitable for hand
feeding. These heads, when fitted with the alloy steel (SP)
profile knives, are suitable for jointing, rebating and profile
work in un-bonded natural timbers. The blocks are supplied
fitted with SP rebate knives.
Please note: The 50mm x 4mm knives will not fit these blocks.

Part Size Body Cutting dia. Maximum
with rebate
number dia. height bore material knives RPM
F230100 100 50 30 Steel 115mm 7,100
Mechanical feed head
F230103 100 50 1¼” Steel 115mm 7,100

Cutterheads for hand feed

These hand feed cutter heads have locators and clamping for
pairs of 5.5mm thickness x 50mm wide profile knives and limitors
as listed on pages 25 to 34. These heads are chip limited and are
therefore suitable for use with hand feed spindle moulders.
These heads, when fitted with the alloy steel (SP) profile knives
and limitors, are suitable for jointing, rebating and profile work
in un-bonded natural timbers. The blocks are supplied fitted with
SP rebate knives and limitors.
Please note: The 50mm x 4mm knives will not fit these blocks.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Cutting dia.
Part Size Body with mounted Maximum
number dia. height bore material rebate knives RPM

F240102 100 50 30 Steel 115mm 10,000
F240103 100 50 1¼” Steel 115mm 10,000

F240120 120 50 30 Aluminium 135mm 6,600 Hand feed head – BG test

24
24 Orders 01580 890500 Technical 01580 890500 Fax 01580 898222
