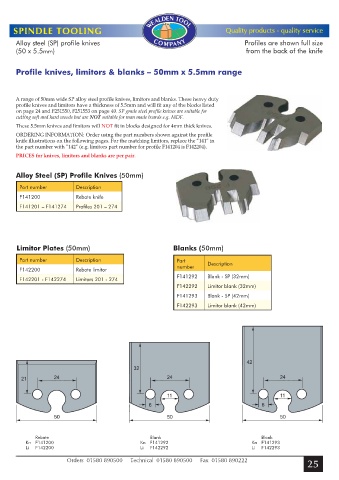

Page 27 - spindle22

SPINDLE TOOLING Quality products - quality service

Alloy steel (SP) profile knives Profiles are shown full size
(50 x 5.5mm) from the back of the knife

Profile knives, limitors & blanks – 50mm x 5.5mm range

A range of 50mm wide SP alloy steel profile knives, limitors and blanks. These heavy duty
profile knives and limitors have a thickness of 5.5mm and will fit any of the blocks listed
on page 24 and F251550, F251553 on page 40. SP grade steel profile knives are suitable for
cutting soft and hard woods but are NOT suitable for man made boards e.g. MDF.
These 5.5mm knives and limitors will NOT fit in blocks designed for 4mm thick knives.
ORDERING INFORMATION: Order using the part numbers shown against the profile
knife illustrations on the following pages. For the matching limitors, replace the “141” in
the part number with “142” (e.g. limitors part number for profile F141204 is F142204).
PRICES for knives, limitors and blanks are per pair.

Alloy Steel (SP) Profile Knives (50mm)

Part number Description
F141200 Rebate knife
F141201 – F141274 Profiles 201 – 274

Limitor Plates (50mm) Blanks (50mm)
Part number Description Part
number Description
F142200 Rebate limitor
F141292 Blank - SP (32mm)
F142201 - F142274 Limitors 201 - 274
F142292 Limitor blank (32mm)
F141293 Blank - SP (42mm)
F142293 Limitor blank (42mm)

Rebate Blank Blank
Kn F141200 Kn F141292 Kn F141293
Li F142200 Li F142292 Li F142293
