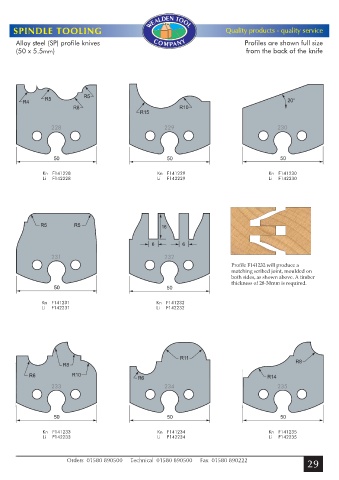

SPINDLE TOOLING Quality products - quality service
Alloy steel (SP) profile knives Profiles are shown full size
(50 x 5.5mm) from the back of the knife
228 229 230
Kn F141228 Kn F141229 Kn F141230
Li F142228 Li F142229 Li F142230
231 232
Profile F141232 will produce a
matching scribed joint, moulded on
both sides, as shown above. A timber
thickness of 28-30mm is required.
Kn F141231 Kn F141232
Li F142231 Li F142232
233 234 235
Kn F141233 Kn F141234 Kn F141235
Li F142233 Li F142234 Li F142235
Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
29
