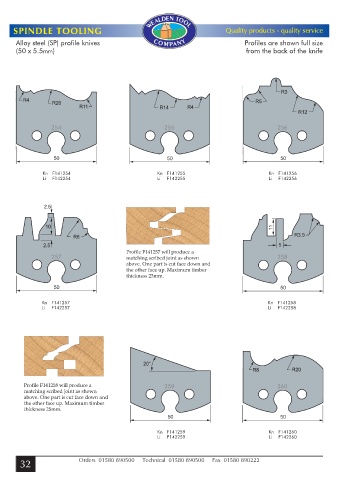

SPINDLE TOOLING Quality products - quality service

Alloy steel (SP) profile knives Profiles are shown full size
(50 x 5.5mm) from the back of the knife

254 255 256

Kn F141254 Kn F141255 Kn F141256
Li F142254 Li F142255 Li F142256

Profile F141257 will produce a
257 matching scribed joint as shown 258
above. One part is cut face down and
the other face up. Maximum timber
thickness 23mm.

Kn F141257 Kn F141258
Li F142257 Li F142258

Profile F141258 will produce a 259 260
matching scribed joint as shown
above. One part is cut face down and
the other face up. Maximum timber
thickness 25mm.

Kn F141259 Kn F141260
Li F142259 Li F142260

32
32 Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
