SPINDLE TOOLING Quality products - quality service

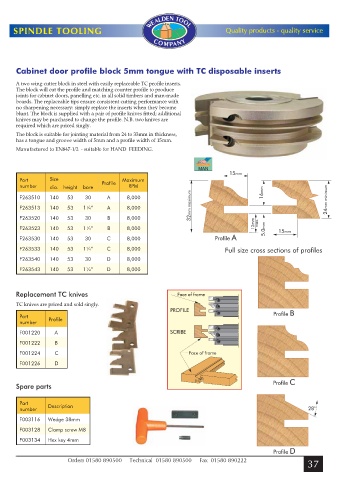

Cabinet door profile block 5mm tongue with TC disposable inserts

A two wing cutter block in steel with easily replaceable TC profile inserts.
The block will cut the profile and matching counter profile to produce
joints for cabinet doors, panelling etc. in all solid timbers and man-made
boards. The replaceable tips ensure consistent cutting performance with
no sharpening necessary: simply replace the inserts when they become
blunt. The block is supplied with a pair of profile knives fitted; additional
knives may be purchased to change the profile. N.B. two knives are
required which are priced singly.
The block is suitable for jointing material from 24 to 33mm in thickness,
has a tongue and groove width of 5mm and a profile width of 15mm.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Size Profile Maximum
number dia. height bore RPM

F263510 140 53 30 A 8,000
F263513 140 53 1¼” A 8,000
F263520 140 53 30 B 8,000

F263523 140 53 1¼” B 8,000
F263530 140 53 30 C 8,000
F263533 140 53 1¼” C 8,000 Full size cross sections of profiles
F263540 140 53 30 D 8,000

F263543 140 53 1¼” D 8,000

Replacement TC knives
TC knives are priced and sold singly.

Part Profile
number
F001220 A

F001222 B
F001224 C
F001226 D

Spare parts

Part
number Description

F003116 Wedge 38mm
F003128 Clamp screw M8
F003134 Hex key 4mm

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
