SPINDLE TOOLING Quality products - quality service

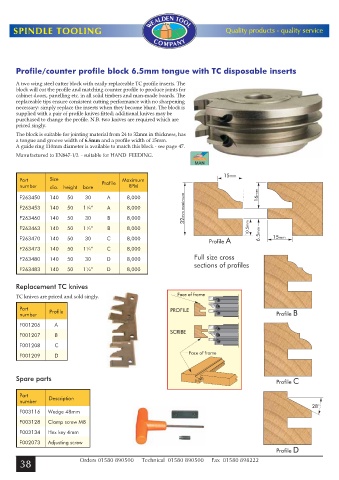

Profile/counter profile block 6.5mm tongue with TC disposable inserts

A two wing steel cutter block with easily replaceable TC profile inserts. The
block will cut the profile and matching counter profile to produce joints for
cabinet doors, panelling etc. in all solid timbers and man-made boards. The
replaceable tips ensure consistent cutting performance with no sharpening
necessary: simply replace the inserts when they become blunt. The block is
supplied with a pair of profile knives fitted; additional knives may be
purchased to change the profile. N.B. two knives are required which are
priced singly.
The block is suitable for jointing material from 24 to 32mm in thickness, has
a tongue and groove width of 6.5mm and a profile width of 15mm.
A guide ring 110mm diameter is available to match this block - see page 47.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Size Profile Maximum
number dia. height bore RPM

F263450 140 50 30 A 8,000
F263453 140 50 1¼” A 8,000
F263460 140 50 30 B 8,000

F263463 140 50 1¼” B 8,000
F263470 140 50 30 C 8,000
F263473 140 50 1¼” C 8,000
Full size cross
F263480 140 50 30 D 8,000
sections of profiles
F263483 140 50 1¼” D 8,000

Replacement TC knives

TC knives are priced and sold singly.
Part
number Profile

F001206 A
F001207 B
F001208 C

F001209 D

Spare parts

Part Description
number
F003116 Wedge 48mm
F003128 Clamp screw M8
F003134 Hex key 4mm
F002073 Adjusting screw

38 Orders 01580 890500 Technical 01580 890500 Fax 01580 898222
