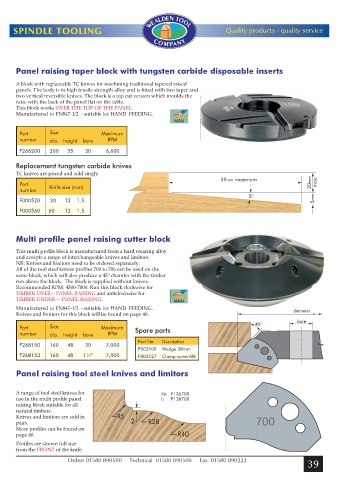

SPINDLE TOOLING Quality products - quality service

Panel raising taper block with tungsten carbide disposable inserts

A block with replaceable TC knives for machining traditional tapered raised
panels. The body is in high tensile strength alloy and is fitted with two taper and
two vertical reversible knives. The block is a top cut version which moulds the
raise with the back of the panel flat on the table.
This block works OVER THE TOP OF THE PANEL.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Size Maximum
number dia. height bore RPM

F268200 200 35 30 6,600

Replacement tungsten carbide knives
TC knives are priced and sold singly.
Part Knife size (mm)
number

F000520 20 12 1.5
F000560 60 12 1.5

Multi profile panel raising cutter block

This multi profile block is manufactured from a hard wearing alloy
and accepts a range of interchangeable knives and limitors.
NB: Knives and limitors need to be ordered separately.
All of the tool steel knives profiles 700 to 706 can be used on the
same block, which will also produce a 45 chamfer with the timber
run above the block. The block is supplied without knives.
Recommended RPM: 4500-7000. Run this block clockwise for
TIMBER OVER – PANEL RAISING and anticloskwise for
TIMBER UNDER –- PANEL RAISING.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.
Knives and limiters for this block will be found on page 40.

Part Size Maximum Spare parts
number dia. height bore RPM
Part No. Description
F268150 160 48 30 7,000
F003109 Wedge 38mm
F268153 160 48 1¼” 7,000 F003127 Clamp screw M8

Panel raising tool steel knives and limitors

A range of tool steel knives for Kn F136700
use in the multi profile panel Li F138700
raising block suitable for all
natural timbers.
Knives and limitors are sold in
pairs.
More profiles can be found on
page 40.
Profiles are shown full size
from the FRONT of the knife.
Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
39
