SPINDLE TOOLING Quality products - quality service

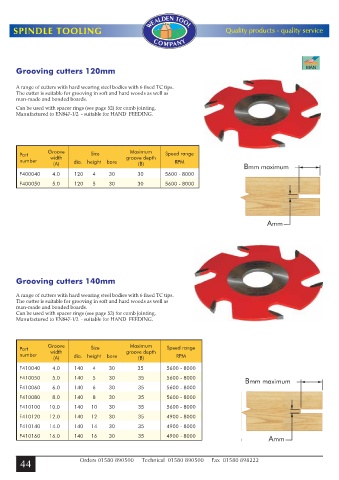

Grooving cutters 120mm

A range of cutters with hard wearing steel bodies with 6 fixed TC tips.
The cutter is suitable for grooving in soft and hard woods as well as
man-made and bonded boards.
Can be used with spacer rings (see page 52) for comb jointing.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Groove Maximum
Part Size Speed range
number width dia. height bore groove depth RPM
(A) (B)
F400040 4.0 120 4 30 30 5600 - 8000
F400050 5.0 120 5 30 30 5600 - 8000

Grooving cutters 140mm

A range of cutters with hard wearing steel bodies with 6 fixed TC tips.
The cutter is suitable for grooving in soft and hard woods as well as
man-made and bonded boards.
Can be used with spacer rings (see page 52) for comb jointing.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Groove Maximum
Part width Size groove depth Speed range
number dia. height bore RPM
(A) (B)
F410040 4.0 140 4 30 35 5600 - 8000
F410050 5.0 140 5 30 35 5600 - 8000
F410060 6.0 140 6 30 35 5600 - 8000

F410080 8.0 140 8 30 35 5600 - 8000
F410100 10.0 140 10 30 35 5600 - 8000
F410120 12.0 140 12 30 35 4900 - 8000
F410140 14.0 140 14 30 35 4900 - 8000
F410160 16.0 140 16 30 35 4900 - 8000
