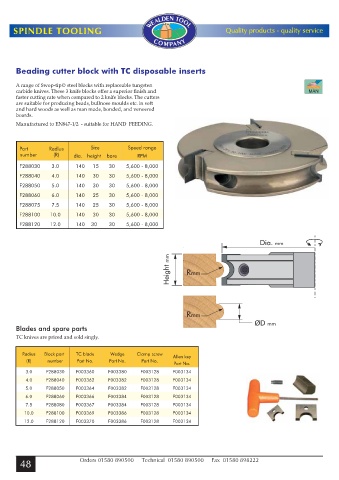

Page 50 - spindle22

SPINDLE TOOLING Quality products - quality service

Beading cutter block with TC disposable inserts

A range of Swop-tip© steel blocks with replaceable tungsten
carbide knives. These 3 knife blocks offer a superior finish and
faster cutting rate when compared to 2 knife blocks. The cutters
are suitable for producing beads, bullnose moulds etc. in soft
and hard woods as well as man made, bonded, and veneered
boards.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Radius Size Speed range
number (R) dia. height bore RPM
F288030 3.0 140 15 30 5,600 - 8,000
F288040 4.0 140 30 30 5,600 - 8,000
F288050 5.0 140 30 30 5,600 - 8,000
F288060 6.0 140 25 30 5,600 - 8,000
F288075 7.5 140 25 30 5,600 - 8,000

F288100 10.0 140 30 30 5,600 - 8,000
F288120 12.0 140 30 30 5,600 - 8,000

Blades and spare parts

TC knives are priced and sold singly.

Radius Block part TC blade Wedge Clamp screw
Allen key
(R) number Part No. Part No. Part No.
Part No.
3.0 F288030 F003360 F003380 F003128 F003134
4.0 F288040 F003362 F003382 F003128 F003134
5.0 F288050 F003364 F003382 F003128 F003134
6.0 F288060 F003366 F003384 F003128 F003134
7.5 F288080 F003367 F003384 F003128 F003134
10.0 F288100 F003369 F003386 F003128 F003134
12.0 F288120 F003370 F003386 F003128 F003134

48 Orders 01580 890500 Technical 01580 890500 Fax 01580 898222
