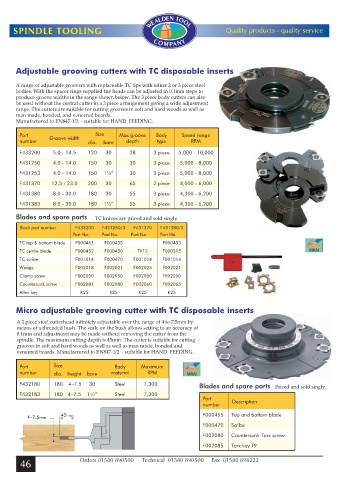

SPINDLE TOOLING                                                           Quality products - quality service







       Adjustable grooving cutters with TC disposable inserts

       A range of adjustable groovers with replaceable TC tips with either 2 or 3 piece steel
       bodies. With the spacer rings supplied the heads can be adjusted in 0.1mm steps to
       produce groove widths in the range shown below. The 3 piece body cutters can also
       be used without the central cutter in a 2 piece arrangement giving a wide adjustment
       range. The cutters are suitable for cutting grooves in soft and hard woods as well as
       man made, bonded, and veneered boards.
       Manufactured to EN847-1/2 - suitable for HAND FEEDING.

        Part      Groove width    Size     Max groove   Body     Speed range
        number                  dia.  bore   depth      type        RPM

        F433200     5.0 - 14.5  120   30       28      3 piece  5,000 - 10,000
        F431250     4.0 - 14.0  150   30       30      3 piece  5,000 - 8,000

        F431253     4.0 - 14.0  150  1¼”       30      3 piece  5,000 - 8,000
        F431370    12.5 - 23.0  200   30       65      2 piece  4,000 - 6,000
        F431380     8.0 - 30.0  180   30       55      3 piece  4,300 - 6,200
        F431383     8.0 - 30.0  180  1¼”       55      3 piece  4,300 - 6,200

       Blades and spare parts     TC knives are priced and sold singly.

        Block part number  F433200   F431250/3  F431370  F431380/3
                           Part No.  Part No.  Part No.  Part No.
        TC top & bottom blade  F000461  F000455           F000453
        TC centre blade    F000452    F000450    TK12     F000515
        TC scribe          F001014    F000470   F001014   F001014
        Wedge              F002018    F002021   F002025   F002021
        Clamp screw        F002050    F002050   F002050   F002050
        Countersunk screw  F002081    F002080   F002060   F002065
        Allen key            K25       K25        K25       K25

       Micro adjustable grooving cutter with TC disposable inserts

       A 2 piece steel cutterhead infinitely adjustable over the range of 4 to 7.5mm by
       means of a threaded bush. The scale on the bush allows setting to an accuracy of
       0.1mm and adjustment may be made without removing the cutter from the
       spindle. The maximum cutting depth is 45mm. The cutter is suitable for cutting
       grooves in soft and hard woods as well as well as man made, bonded and
       veneered boards. Manufactured to EN847-1/2 - suitable for HAND FEEDING.

        Part        Size                 Body      Maximum
        number      dia. height  bore   material     RPM

        F432180     180  4–7.5  30       Steel      7,300
                                                                       Blades and spare parts Priced and sold singly.
        F432183     180 4–7.5   1¼”      Steel      7,300
                                                                        Part       Description
                                                                        number
                                                                        F000455   Top and bottom blade

                                                                        F000470   Scribe
                                                                        F002080   Countersunk Torx screw
                                                                        F002085   Torx key T9
