SPINDLE TOOLING Quality products - quality service

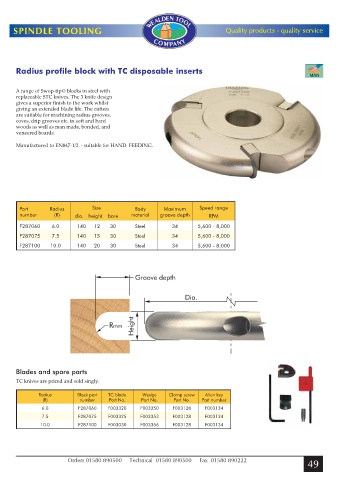

Radius profile block with TC disposable inserts

A range of Swop-tip© blocks in steel with
replaceable STC knives. The 3 knife design
gives a superior finish to the work whilst
giving an extended blade life. The cutters
are suitable for machining radius grooves,
coves, drip grooves etc. in soft and hard
woods as well as man made, bonded, and
veneered boards.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Radius Size Body Maximum Speed range
number (R) dia. height bore material groove depth RPM
F287060 6.0 140 12 30 Steel 34 5,600 - 8,000
F287075 7.5 140 15 30 Steel 34 5,600 - 8,000
F287100 10.0 140 20 30 Steel 34 5,600 - 8,000

Blades and spare parts
TC knives are priced and sold singly.

Radius Block part TC blade Wedge Clamp screw Allen key
(R) number Part No. Part No. Part No. Part number
6.0 F287060 F003320 F003350 F003128 F003134
7.5 F287075 F003325 F003353 F003128 F003134
10.0 F287100 F003030 F003356 F003128 F003134

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
