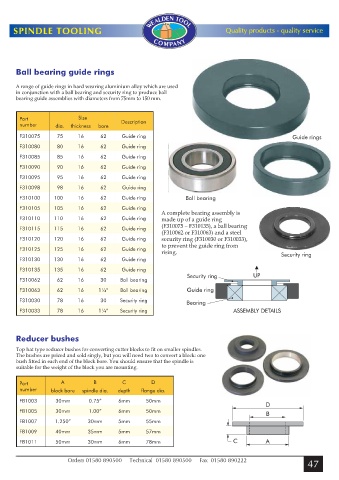

SPINDLE TOOLING Quality products - quality service

Ball bearing guide rings

A range of guide rings in hard wearing aluminium alloy which are used
in conjunction with a ball bearing and security ring to produce ball
bearing guide assemblies with diameters from 75mm to 150 mm.

Part Size Description
number dia. thickness bore
F310075 75 16 62 Guide ring Guide rings

F310080 80 16 62 Guide ring
F310085 85 16 62 Guide ring
F310090 90 16 62 Guide ring
F310095 95 16 62 Guide ring

F310098 98 16 62 Guide ring
F310100 100 16 62 Guide ring Ball bearing
F310105 105 16 62 Guide ring
A complete bearing assembly is
F310110 110 16 62 Guide ring made up of a guide ring
(F310075 – F310135), a ball bearing
F310115 115 16 62 Guide ring
(F310062 or F310063) and a steel
F310120 120 16 62 Guide ring security ring (F310030 or F310033),
to prevent the guide ring from
F310125 125 16 62 Guide ring
rising.
Security ring
F310130 130 16 62 Guide ring
F310135 135 16 62 Guide ring
F310062 62 16 30 Ball bearing
F310063 62 16 1¼” Ball bearing
F310030 78 16 30 Security ring

F310033 78 16 1¼” Security ring

Reducer bushes
Top hat type reducer bushes for converting cutter blocks to fit on smaller spindles.
The bushes are priced and sold singly, but you will need two to convert a block: one
bush fitted in each end of the block bore. You should ensure that the spindle is
suitable for the weight of the block you are mounting.

Part A B C D
number block bore spindle dia. depth flange dia.
FB1003 30mm 0.75” 6mm 50mm

FB1005 30mm 1.00” 6mm 50mm
FB1007 1.250” 30mm 5mm 55mm
FB1009 40mm 35mm 5mm 57mm
FB1011 50mm 30mm 6mm 78mm

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
