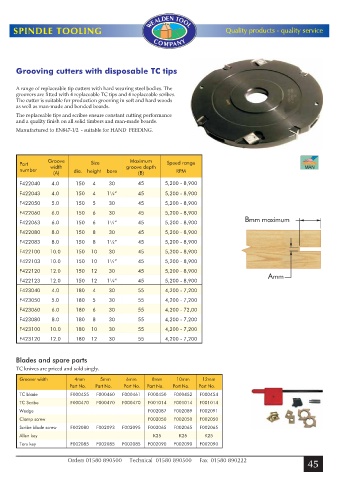

SPINDLE TOOLING Quality products - quality service

Grooving cutters with disposable TC tips

A range of replaceable tip cutters with hard wearing steel bodies. The
groovers are fitted with 4 replaceable TC tips and 4 replaceable scribes.
The cutter is suitable for production grooving in soft and hard woods
as well as man-made and bonded boards.
The replaceable tips and scribes ensure constant cutting performance
and a quality finish on all solid timbers and man-made boards.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Groove Maximum
Part width Size groove depth Speed range
number dia. height bore RPM
(A) (B)
F422040 4.0 150 4 30 45 5,200 - 8,900
F422043 4.0 150 4 1¼” 45 5,200 - 8,900
F422050 5.0 150 5 30 45 5,200 - 8,900
F422060 6.0 150 6 30 45 5,200 - 8,900
F422063 6.0 150 6 1¼” 45 5,200 - 8,900
F422080 8.0 150 8 30 45 5,200 - 8,900

F422083 8.0 150 8 1¼” 45 5,200 - 8,900
F422100 10.0 150 10 30 45 5,200 - 8,900
F422103 10.0 150 10 1¼” 45 5,200 - 8,900
F422120 12.0 150 12 30 45 5,200 - 8,900
F422123 12.0 150 12 1¼” 45 5,200 - 8,900
F423040 4.0 180 4 30 55 4,200 - 7,200
F423050 5.0 180 5 30 55 4,200 - 7,200

F423060 6.0 180 6 30 55 4,200 - 72,00
F423080 8.0 180 8 30 55 4,200 - 7,200
F423100 10.0 180 10 30 55 4,200 - 7,200
F423120 12.0 180 12 30 55 4,200 - 7,200

Blades and spare parts
TC knives are priced and sold singly.

Groover width 4mm 5mm 6mm 8mm 10mm 12mm
Part No. Part No. Part No. Part No. Part No. Part No.
TC blade F000455 F000460 F000461 F000450 F000452 F000454
TC Scribe F000470 F000470 F000470 F001014 F001014 F001014
Wedge F002087 F002089 F002091
Clamp screw F002050 F002050 F002050
Scribe blade screw F002080 F002093 F002095 F002065 F002065 F002065
Allen key K25 K25 K25
Torx key F002085 F002085 F002085 F002090 F002090 F002090

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
