SPINDLE TOOLING Quality products - quality service

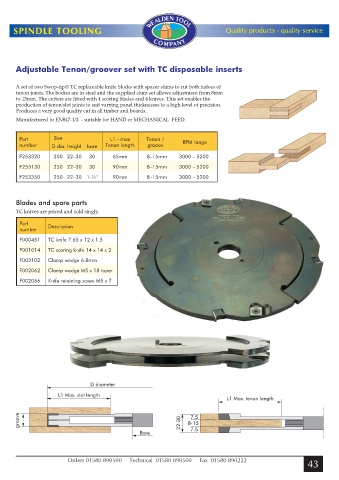

Adjustable Tenon/groover set with TC disposable inserts

A set of two Swop-tip© TC replaceable knife blocks with spacer shims to cut both halves of
tenon joints. The bodies are in steel and the supplied shim set allows adjustment from 8mm
to 15mm. The cutters are fitted with 4 scoring blades and 4 knives. This set enables the
production of tenon/slot joints to suit varying panel thicknesses to a high level of precision.
Produces a very good quality cut in all timber and boards..
Manufactured to EN847-1/2 - suitable for HAND or MECHANICAL FEED.

Part Size L1 - max Tenon / RPM range
number D dia. height bore Tenon length groove

F253320 200 22–30 30 65mm 8–15mm 3000 – 5200
F253130 250 22–30 30 90mm 8–15mm 3000 – 5200
F253350 250 22–30 1-¼" 90mm 8–15mm 3000 – 5200

Blades and spare parts
TC knives are priced and sold singly.
Part Description
number
F000451 TC knife 7.65 x 12 x 1.5
F001014 TC scoring knife 14 x 14 x 2

F003102 Clamp wedge 6.8mm
F002062 Clamp wedge M5 x 18 taper
F002066 Knife retaining screw M5 x 7

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
