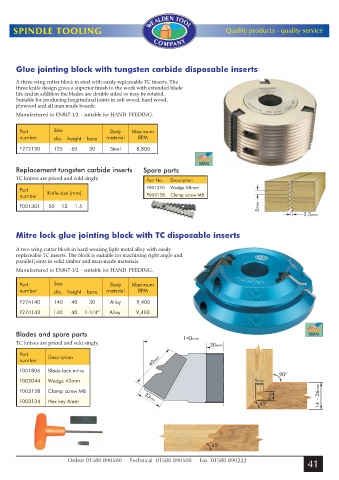

Page 43 - spindle22

SPINDLE TOOLING Quality products - quality service

Glue jointing block with tungsten carbide disposable inserts

A three wing cutter block in steel with easily replaceable TC inserts. The
three knife design gives a superior finish to the work with extended blade
life and in addition the blades are double sided so may be rotated.
Suitable for producing longitudinal joints in soft wood, hard wood,
plywood and all man made boards.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Size Body Maximum
number dia. height bore material RPM
F272130 125 60 30 Steel 8,800

Replacement tungsten carbide inserts Spare parts
TC knives are priced and sold singly. Part No. Description
F001310 Wedge 58mm
Part
number Knife size (mm) F003128 Clamp screw M8
F001301 50 12 1.5

Mitre lock glue jointing block with TC disposable inserts

A two wing cutter block in hard wearing light metal alloy with easily
replaceable TC inserts. The block is suitable for machining right angle and
parallel joints in solid timber and man-made materials.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Size Body Maximum
number dia. height bore material RPM

F274140 140 40 30 Alloy 9,400
F274143 140 40 1-1/4” Alloy 9,400

Blades and spare parts
TC knives are priced and sold singly.
Part Description
number

F001806 Blade lock mitre
F002044 Wedge 42mm
F003128 Clamp screw M8

F003134 Hex key 4mm

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
