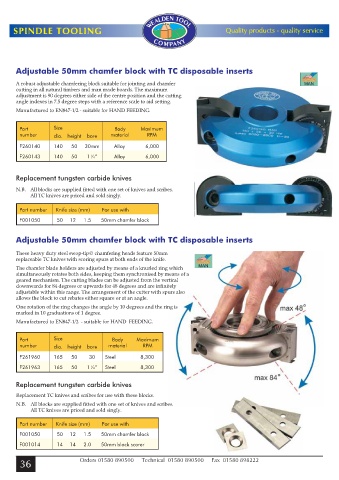

SPINDLE TOOLING                                                           Quality products - quality service







       Adjustable 50mm chamfer block with TC disposable inserts

       A robust adjustable chamfering block suitable for jointing and chamfer
       cutting in all natural timbers and man made boards. The maximum
       adjustment is 90 degrees either side of the centre position and the cutting
       angle indexes in 7.5 degree steps with a reference scale to aid setting.
       Manufactured to EN847-1/2 - suitable for HAND FEEDING.


        Part        Size                 Body     Maximum
        number      dia. height  bore   material     RPM

        F260140     140   50   30mm      Alloy      6,000
        F260143     140   50    1¼”      Alloy      6,000


       Replacement tungsten carbide knives

       N.B. All blocks are supplied fitted with one set of knives and scribes.
            All TC knives are priced and sold singly.


        Part number  Knife size (mm)  For use with
        F001050      50   12  1.5    50mm chamfer block


       Adjustable 50mm chamfer block with TC disposable inserts

       These heavy duty steel swop-tip© chamfering heads feature 50mm
       replaceable TC knives with scoring spurs at both ends of the knife.
       The chamfer blade holders are adjusted by means of a knurled ring which
       simultaneously rotates both sides, keeping them synchronised by means of a
       geared mechanism. The cutting blades can be adjusted from the vertical
       downwards for 84 degrees or upwards for 48 degrees and are infinitely
       adjustable within this range. The arrangement of the cutter with spurs also
       allows the block to cut rebates either square or at an angle.
       One rotation of the ring changes the angle by 10 degrees and the ring is
       marked in 10 graduations of 1 degree.
       Manufactured to EN847-1/2 - suitable for HAND FEEDING.


        Part        Size                Body     Maximum
        number      dia. height  bore  material    RPM

        F261960     165   50    30    Steel       8,300
        F261963     165   50    1¼”   Steel       8,300


       Replacement tungsten carbide knives
       Replacement TC knives and scribes for use with these blocks.
       N.B. All blocks are supplied fitted with one set of knives and scribes.
            All TC knives are priced and sold singly.
        Part number  Knife size (mm)  For use with

        F001050      50   12  1.5    50mm chamfer block
        F001014      14   14  2.0    50mm block scorer
