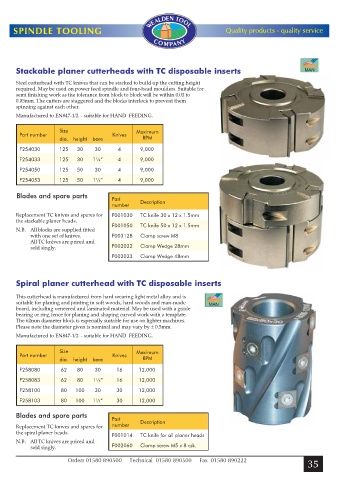

SPINDLE TOOLING Quality products - quality service

Stackable planer cutterheads with TC disposable inserts

Steel cutterhead with TC knives that can be stacked to build up the cutting height
required. May be used on power feed spindle and four-head moulders. Suitable for
semi finishing work as the tolerance from block to block will be within 0.03 to
0.05mm. The cutters are staggered and the blocks interlock to prevent them
spinning against each other.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Size Maximum
Part number Knives
dia. height bore RPM
F254030 125 30 30 4 9,000
F254033 125 30 1¼” 4 9,000

F254050 125 50 30 4 9,000
F254053 125 50 1¼” 4 9,000

Blades and spare parts
Part Description
number

Replacement TC knives and spares for F001030 TC knife 30 x 12 x 1.5mm
the stackable planer heads.
F001050 TC knife 50 x 12 x 1.5mm
N.B. All blocks are supplied fitted
with one set of knives. F003128 Clamp screw M8
All TC knives are priced and
sold singly. F002022 Clamp Wedge 28mm
F002023 Clamp Wedge 48mm

Spiral planer cutterhead with TC disposable inserts

This cutterhead is manufactured from hard wearing light metal alloy and is
suitable for planing and jointing in soft woods, hard woods and man-made
board, including veneered and laminated material. May be used with a guide
bearing or ring fence for planing and shaping curved work with a template.
The 62mm diameter block is especially suitable for use on lighter machines.
Please note the diameter given is nominal and may vary by 0.5mm.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Size Maximum
Part number Knives
dia. height bore RPM
F258080 62 80 30 16 12,000
F258083 62 80 1¼” 16 12,000
F258100 80 100 30 30 12,000
F258103 80 100 1¼” 30 12,000

Blades and spare parts
Part Description
Replacement TC knives and spares for number
the spiral planer heads.
F001014 TC knife for all planer heads
N.B. All TC knives are priced and
sold singly. F002060 Clamp screw M5 x 8 csk.
Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
35
