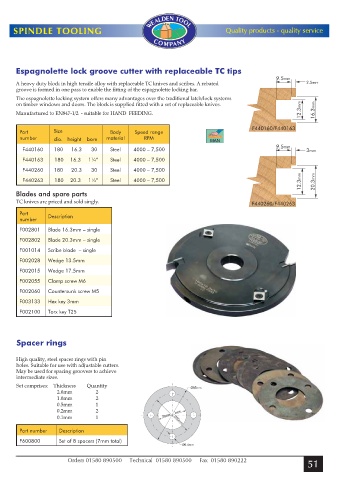

Page 53 - spindle22

SPINDLE TOOLING Quality products - quality service

Espagnolette lock groove cutter with replaceable TC tips

A heavy duty block in high tensile alloy with replaceable TC knives and scribes. A rebated
groove is formed in one pass to enable the fitting of the espagnolette locking bar.
The espagnolette locking system offers many advantages over the traditional latch/lock systems
on timber windows and doors. The block is supplied fitted with a set of replaceable knives.
Manufactured to EN847-1/2 - suitable for HAND FEEDING.

Part Size Body Speed range
number dia. height bore material RPM
F440160 180 16.3 30 Steel 4000 – 7,500
F440163 180 16.3 1¼” Steel 4000 – 7,500

F440260 180 20.3 30 Steel 4000 – 7,500
F440263 180 20.3 1¼” Steel 4000 – 7,500

Blades and spare parts
TC knives are priced and sold singly.
Part
number Description
F002801 Blade 16.3mm – single
F002802 Blade 20.3mm – single
F001014 Scribe blade – single

F002028 Wedge 13.5mm
F002015 Wedge 17.5mm
F002055 Clamp screw M6
F002060 Countersunk screw M5

F003133 Hex key 3mm
F002100 Torx key T25

Spacer rings

High quality, steel spacer rings with pin
holes. Suitable for use with adjustable cutters.
May be used for spacing groovers to achieve
intermediate sizes.
Set comprises: Thickness Quantity
2.0mm 2
1.0mm 2
0.5mm 1
0.2mm 2
0.1mm 1

Part number Description
F600800 Set of 8 spacers (7mm total)

Orders 01580 890500 Technical 01580 890500 Fax 01580 890222
