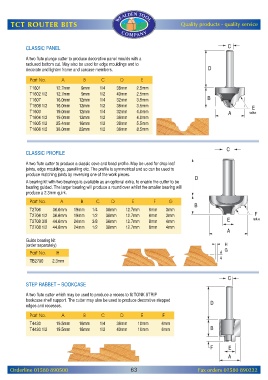

Page 65 - Rout2021

WEALDEN TOOL
TCT ROUTER BITS Quality products - quality service
COM PAN Y

CLASSIC PANEL

A two flute plunge cutter to produce decorative panel moulds with a
radiused bottom cut. May also be used for edge mouldings and to
decorate and lighten frame and carcase members.

Part No. A B C D E
T1601 12.7mm 9mm 1/4 38mm 2.5mm
T1602 1/2 12.7mm 9mm 1/2 40mm 2.5mm
T1607 16.0mm 12mm 1/4 32mm 3.5mm
T1608 1/2 16.0mm 12mm 1/2 38mm 3.5mm
T1603 19.0mm 12mm 1/4 32mm 4.0mm
T1604 1/2 19.0mm 12mm 1/2 38mm 4.0mm
T1605 1/2 25.4mm 16mm 1/2 38mm 5.5mm
T1606 1/2 38.0mm 22mm 1/2 38mm 8.5mm

CLASSIC PROFILE

A two flute cutter to produce a classic cove and bead profile. May be used for drop leaf
joints, edge mouldings, panelling etc. The profile is symmetrical and so can be used to
produce matching joints by reversing one of the work pieces.
A bearing kit with two bearings is available as an optional extra, to enable the cutter to be
bearing guided. The larger bearing will produce a round over whilst the smaller bearing will
produce a 2.3mm quirk.
Part No. A B C D E F G

T2706 36.6mm 19mm 1/4 30mm 12.7mm 6mm 3mm
T2706 1/2 36.6mm 19mm 1/2 38mm 12.7mm 6mm 3mm
T2708 3/8 44.6mm 24mm 3/8 36mm 12.7mm 8mm 4mm
T2708 1/2 44.6mm 24mm 1/2 38mm 12.7mm 8mm 4mm

Guide bearing kit
(order separately)

Part No. H
TB2700 2.3mm

STEP RABBET – BOOKCASE

A two flute cutter which may be used to produce a recess to fit TONK STRIP
bookcase shelf support. The cutter may also be used to produce decorative stepped
edges and recesses.

Part No. A B C D E F
T4430 19.5mm 18mm 1/4 38mm 10mm 6mm
T4430 1/2 19.5mm 18mm 1/2 40mm 10mm 6mm

Orderline 01580 890500 63 Fax orders 01580 890222
