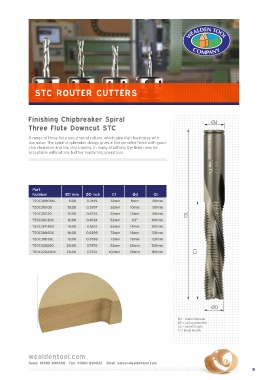

STC ROUTER CUTTERS

Finishing Chipbreaker Spiral
Three Flute Downcut STC

A range of three flute upcut spiral cutters, which give high feed rates with
low noise. The spiral chipbreaker design gives a fine serrated finish with good
chip clearance and low chip loading. In many situations the finish may be
acceptable without any further machining operations.

Part
Number ØD mm ØD inch C1 Ød OL
T5DC308080L 8.00 0.3149 32mm 8mm 80mm
T5DC310100 10.00 0.3937 32mm 10mm 80mm
T5DC312120 12.00 0.4724 32mm 12mm 80mm
T5DC312120X 12.00 0.4724 52mm 1/2” 100mm
T5DC314140X 14.00 0.5512 52mm 14mm 100mm
T5DC316160X 16.00 0.6299 72mm 16mm 130mm
T5DC318180L 18.00 0.7086 72mm 18mm 120mm
T5DC320200 20.00 0.7874 52mm 20mm 100mm
T5DC320200X 20.00 0.7874 102mm 20mm 150mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
