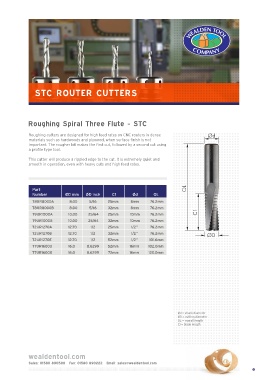

Page 9 - CNC catalogue 2021

STC ROUTER CUTTERS

Roughing Spiral Three Flute - STC

Roughing cutters are designed for high feed rates on CNC routers in dense Ød
materials such as hardwoods and plywood, when surface finish is not
important. The rougher bit makes the first cut, followed by a second cut using
a profile type tool.

This cutter will produce a rippled edge to the cut. It is extremely quiet and
smooth in operation, even with heavy cuts and high feed rates.

Part OL
Number ØD mm ØD inch C1 Ød OL
T8UR8000A 8.00 5/16 25mm 8mm 76.2mm
T8UR8000B 8.00 5/16 32mm 8mm 76.2mm
T9UR1000A 10.00 25/64 25mm 10mm 76.2mm C1
T9UR1000B 10.00 25/64 32mm 10mm 76.2mm
T2UR1270A 12.70 1/2 25mm 1/2” 76.2mm
T2UR1270B 12.70 1/2 32mm 1/2” 76.2mm
ØD
T2UR1270E 12.70 1/2 52mm 1/2” 101.6mm
T7UR1600D 16.0 0.6299 52mm 16mm 102.0mm
T7UR1600G 16.0 0.6299 72mm 16mm 120.0mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
