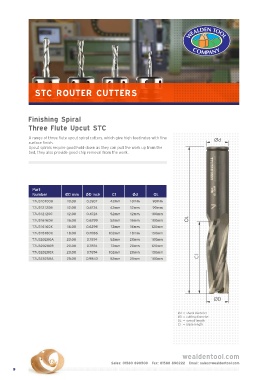

Page 12 - CNC catalogue 2021

STC ROUTER CUTTERS

Finishing Spiral
Three Flute Upcut STC

A range of three flute upcut spiral cutters, which give high feed rates with fine
surface finish.
Upcut spirals require good hold-down as they can pull the work up from the
bed, they also provide good chip removal from the work.

Part
Number ØD mm ØD inch C1 Ød OL
T7U310100B 10.00 0.3937 42mm 10mm 90mm
T7U312120B 12.00 0.4724 42mm 12mm 90mm
T7U312120C 12.00 0.4724 52mm 12mm 100mm
T7U316160B 16.00 0.6299 52mm 16mm 100mm
T7U316160X 16.00 0.6299 72mm 16mm 120mm
T7U318180X 18.00 0.7086 102mm 18mm 150mm
T7U320200A 20.00 0.7874 52mm 20mm 100mm
T7U320200B 20.00 0.7874 72mm 20mm 120mm
T7U320200X 20.00 0.7874 102mm 20mm 150mm
T7U325250A 25.00 0.9843 52mm 25mm 100mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
