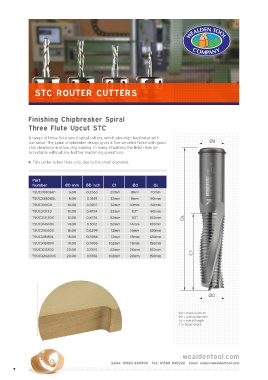

Page 10 - CNC catalogue 2021

STC ROUTER CUTTERS

Finishing Chipbreaker Spiral
Three Flute Upcut STC

A range of three flute upcut spiral cutters, which give high feed rates with
low noise. The spiral chipbreaker design gives a fine serrated finish with good
chip clearance and low chip loading. In many situations the finish may be
acceptable without any further machining operations.
This cutter is two flute only, due to the small diameter.
*

Part
Number ØD mm ØD inch C1 Ød OL
T5UC208060* 6.00 0.2363 22mm 8mm 70mm
T5UC308080L 8.00 0.3149 32mm 8mm 80mm
T5UC310100 10.00 0.3937 32mm 10mm 80mm
T5UC312120 12.00 0.4724 32mm 1/2” 80mm
T5UC312120X 12.00 0.4724 52mm 1/2” 100mm
T5UC314140X 14.00 0.5512 52mm 14mm 100mm
T5UC316160X 16.00 0.6299 72mm 16mm 120mm
T5UC318180L 18.00 0.7086 72mm 18mm 120mm
T5UC318180X 18.00 0.7086 102mm 18mm 150mm
T5UC320200 20.00 0.7874 52mm 20mm 100mm
T5UC320200X 20.00 0.7874 102mm 20mm 150mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
