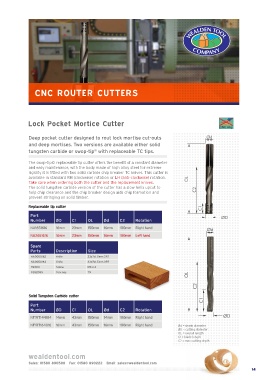

Page 17 - CNC catalogue 2021

CNC ROUTER CUTTERS

Lock Pocket Mortice Cutter

Deep pocket cutter designed to rout lock mortise cut-outs Ød
and deep mortises. Two versions are available either solid
tungsten carbide or swop-tip with replaceable TC tips.
©
The swop-tip© replaceable tip cutter offers the benefit of a constant diameter
and easy maintenance, with the body made of high alloy steel for extreme
rigidity it is fitted with two solid carbide chip breaker TC knives. This cutter is
available in standard RH (clockwise) rotation or LH (anti-clockwise) rotation. OL
Take care when ordering both the cutter and the replacement knives.
The solid tungsten carbide version of the cutter has a slow helix upcut to
help chip clearance and the chip breaker design aids chip formation and C2
prevent stringing on solid timber.
Replaceable tip cutter C1

Part
Number ØD C1 OL Ød C2 Rotation ØD
NA1651616 16mm 23mm 150mm 16mm 100mm Right hand

NA2651616 16mm 23mm 150mm 16mm 100mm Left hand

Spare
Parts Description Size
NA0050162 Knife 23x7x1.5mm 2RT
NA0050163 Knife 23x7x1.5mm 3RT
TQ304 Screw M3 x 4
F002085 Torx key T9

Solid Tungsten Carbide cutter

Part
Number ØD C1 OL Ød C2 Rotation
NF1RT144014 14mm 43mm 150mm 14mm 100mm Right hand

NF1RT164016 16mm 43mm 150mm 16mm 100mm Right hand Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
C2 = max cutting depth
