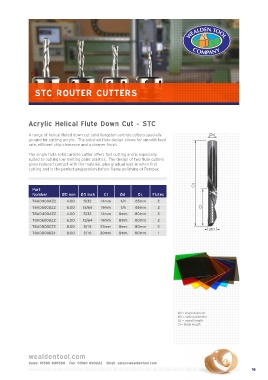

Page 19 - CNC catalogue 2021
P. 19
STC ROUTER CUTTERS
Acrylic Helical Flute Down Cut - STC
A range of helical fluted down-cut solid tungsten carbide cutters specially Ød
ground for cutting acrylic. The polished flute design allows for smooth feed
rate, efficient chip clearance and a cleaner finish.
The single flute solid carbide cutter offers fast cutting and is especially
suited to cutting low melting point plastics. The design of two flute cutters
gives reduced contact with the material, plus gradual lead-in when first
cutting and is the perfect preparation before flame polishing of Perspex.
OL
Part
Number ØD mm ØD inch C1 Ød OL Flutes
T4AD400AZ2 4.00 5/32 14mm 1/4 65mm 2
T4AD600BZ2 6.00 15/64 19mm 1/4 65mm 2 C1
T8AD400AZ2 4.00 5/32 14mm 8mm 80mm 2
T8AD600BZ2 6.00 15/64 19mm 8mm 80mm 2
T8AD800CZ2 8.00 5/16 25mm 8mm 80mm 2
ØD
T8AD800DZ1 8.00 5/16 30mm 8mm 80mm 1
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
