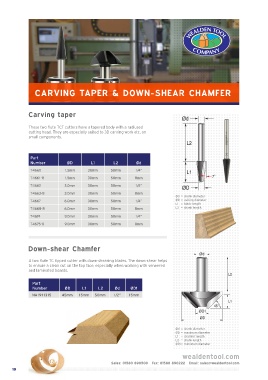

Page 22 - CNC catalogue 2021

CARVING TAPER & DOWN-SHEAR CHAMFER

Carving taper

These two flute TCT cutters have a tapered body with a radiused
cutting head. They are especially suited to 3D carving work etc. on
small components.

Part
Number ØD L1 L2 Ød

T4660 1.5mm 30mm 50mm 1/4”
T4661-8 1.5mm 30mm 50mm 8mm
T4662 3.0mm 30mm 50mm 1/4”
T4663-8 3.0mm 30mm 50mm 8mm
Ød = shank diameter
T4667 6.0mm 30mm 50mm 1/4” ØD = cutting diameter
L1 = blade length
T4668-8 6.0mm 30mm 50mm 8mm L2 = shank length
T4674 9.0mm 30mm 50mm 1/4”

T4675-8 9.0mm 30mm 50mm 8mm

Down-shear Chamfer

A two flute TC tipped cutter with down-shearing blades. The down-shear helps
to ensure a clean cut on the top face, especially when working with veneered
and laminated boards.

Part
Number ØD L1 L2 Ød ØD1
NA1911315 45mm 15mm 50mm 1/2” 15mm

Ød = shank diameter
ØD = maximum diameter
L1 = chamfer length
L2 = shank length
ØD1 = mimimum diameter
