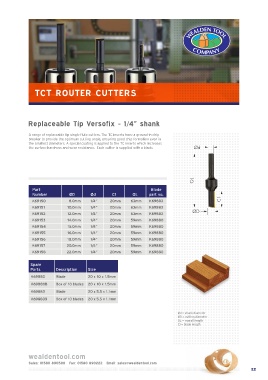

Page 25 - CNC catalogue 2021

TCT ROUTER CUTTERS

Replaceable Tip Versofix - 1/4” shank

A range of replaceable tip single flute cutters. The TC inserts have a ground-in chip
breaker to provide the optimum cutting angle, ensuring good chip formation even in
the smallest diameters. A special coating is applied to the TC inserts which increases
the surface hardness and wear resistance. Each cutter is supplied with a blade. Ød

OL

Part Blade
Number ØD Ød C1 OL part no.
K69150 8.0mm 1/4” 20mm 63mm K69883 C1
K69151 10.0mm 1/4” 20mm 63mm K69883
ØD
K69152 12.0mm 1/4” 20mm 63mm K69883
K69153 14.0mm 1/4” 20mm 59mm K69880
K69154 15.0mm 1/4” 20mm 59mm K69880
K69155 16.0mm 1/4” 20mm 59mm K69880
K69156 18.0mm 1/4” 20mm 59mm K69880
K69157 20.0mm 1/4” 20mm 59mm K69880
K69158 22.0mm 1/4” 20mm 59mm K69880

Spare
Parts Description Size
K69880 Blade 20 x 10 x 1.5mm
K69880B Box of 10 blades 20 x 10 x 1.5mm
K69883 Blade 20 x 5.5 x 1.1mm
K69883B Box of 10 blades 20 x 5.5 x 1.1mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
