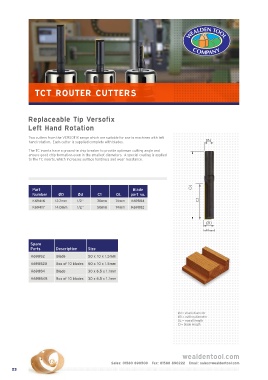

Page 26 - CNC catalogue 2021

TCT ROUTER CUTTERS

Replaceable Tip Versofix
Left Hand Rotation

Two cutters from the VERSOFIX range which are suitable for use in machines with left
hand rotation. Each cutter is supplied complete with blades. Ød
The TC inserts have a ground-in chip breaker to provide optimum cutting angle and
ensure good chip formation even in the smallest diameters. A special coating is applied
to the TC inserts, which increases surface hardness and wear resistance.

Part Blade OL
Number ØD Ød C1 OL part no.
K69416 12.7mm 1/2” 30mm 74mm K69884 C1
K69417 14.0mm 1/2” 50mm 74mm K69882

ØD
Left hand

Spare
Parts Description Size
K69882 Blade 50 x 10 x 1.5mm
K69882B Box of 10 blades 50 x 10 x 1.5mm
K69884 Blade 30 x 6.5 x 1.1mm

K69884B Box of 10 blades 30 x 6.5 x 1.1mm

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
