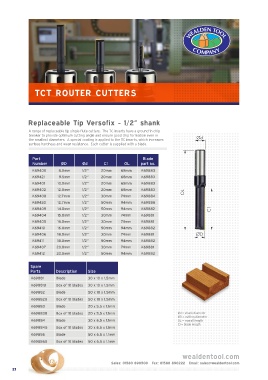

Page 24 - CNC catalogue 2021

TCT ROUTER CUTTERS

Replaceable Tip Versofix - 1/2” shank

A range of replaceable tip single flute cutters. The TC inserts have a ground-in chip
breaker to provide optimum cutting angle and ensure good chip formation even in
the smallest diameters. A special coating is applied to the TC inserts, which increases Ød
surface hardness and wear resistance. Each cutter is supplied with a blade.

Part Blade
Number ØD Ød C1 OL part no.
K69400 8.0mm 1/2” 20mm 68mm K69883
K69421 9.5mm 1/2” 20mm 68mm K69883
K69401 10.0mm 1/2” 20mm 68mm K69883
K69402 12.0mm 1/2” 20mm 68mm K69883 OL
K69408 12.7mm 1/2” 30mm 74mm K69884
K69420 12.7mm 1/2” 50mm 94mm K69886
K69409 14.0mm 1/2” 50mm 94mm K69882 C1
K69404 15.0mm 1/2” 30mm 74mm K69881
K69405 16.0mm 1/2” 30mm 74mm K69881
K69410 16.0mm 1/2” 50mm 94mm K69882
K69406 18.0mm 1/2” 30mm 74mm K69881 ØD
K69411 18.0mm 1/2” 50mm 94mm K69882
K69407 20.0mm 1/2” 30mm 74mm K69881
K69412 20.0mm 1/2” 50mm 94mm K69882

Spare
Parts Description Size
K69881 Blade 30 x 10 x 1.5mm
K69881B Box of 10 blades 30 x 10 x 1.5mm
K69882 Blade 50 x 10 x 1.5mm
K69882B Box of 10 blades 50 x 10 x 1.5mm
K69883 Blade 20 x 5.5 x 1.1mm
K69883B Box of 10 blades 20 x 5.5 x 1.1mm Ød = shank diameter
ØD = cutting diameter
K69884 Blade 30 x 6.5 x 1.1mm OL = overall length
C1 = blade length
K69884B Box of 10 blades 30 x 6.5 x 1.1mm
K69886 Blade 50 x 6.5 x 1.1mm
K69886B Box of 10 blades 50 x 6.5 x 1.1mm
