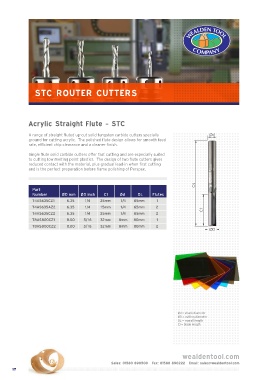

Page 20 - CNC catalogue 2021
P. 20
STC ROUTER CUTTERS
Acrylic Straight Flute - STC
A range of straight fluted up-cut solid tungsten carbide cutters specially Ød
ground for cutting acrylic. The polished flute design allows for smooth feed
rate, efficient chip clearance and a cleaner finish.
Single flute solid carbide cutters offer fast cutting and are especially suited
to cutting low melting point plastics. The design of two flute cutters gives
reduced contact with the material, plus gradual lead-in when first cutting
and is the perfect preparation before flame polishing of Perspex.
OL
Part
Number ØD mm ØD inch C1 Ød OL Flutes
T4AS635CZ1 6.35 1/4 25mm 1/4 65mm 1
T4AS635AZ2 6.35 1/4 15mm 1/4 65mm 2 C1
T4AS635CZ2 6.35 1/4 25mm 1/4 65mm 2
T8AS800CZ1 8.00 5/16 32mm 8mm 80mm 1
T8AS800CZ2 8.00 5/16 32mm 8mm 80mm 2
ØD
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
