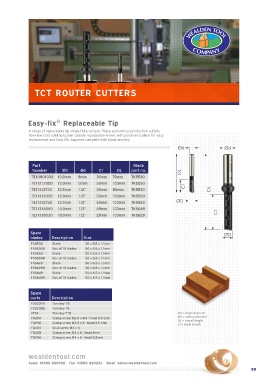

Page 23 - CNC catalogue 2021

TCT ROUTER CUTTERS

©
Easy-fix Replaceable Tip
A range of replaceable tip single flute cutters. These economical production cutters
have low cost solid tungsten carbide replaceable knives with positive location for easy
replacement and long life. Supplied complete with blade and key.
Ød Ød

Part Blade
Number ØD Ød C1 OL part no. OL
TE10801030 10.0mm 8mm 30mm 70mm TK5530
TE11212050 12.0mm 12mm 50mm 103mm TK5550 C1
TE11312730 12.7mm 1/2” 30mm 80mm TK5530 OL
TE11312050 12.0mm 1/2” 50mm 103mm TK5550
TE11312750 12.7mm 1/2” 50mm 103mm TK5550 ØD
TE11314050 14.0mm 1/2” 49mm 103mm TK5649 C1
TE11318030 18.0mm 1/2” 29mm 103mm TK5629

Spare ØD
blades Description Size
TK5530 Blade 30 x 5.5 x 1.1mm
TK5530B Box of 10 blades 30 x 5.5 x 1.1mm
TK5550 Blade 20 x 5.5 x 1.1mm
TK5550B Box of 10 blades 20 x 5.5 x 1.1mm
TK5629 Blade 30 x 6.5 x 1.1mm
TK5629B Box of 10 blades 30 x 6.5 x 1.1mm
TK5649 Blade 50 x 6.5 x 1.1mm
TK5649B Box of 10 blades 50 x 6.5 x 1.1mm

Spare
parts Description
F002079 Torx key T8
F002085 Torx key T9
KT15 Torx key T15 Ød = shank diameter
TQ254 Clamp screw M2.5 x 4.5 - head 3.5 c/sk ØD = cutting diameter
TQ256 Clamp screw M2.5 x 6 - head 3.5 c/sk OL = overall length
C1 = blade length
TQ404 Grub screw M4 x 4
TQ408 Clamp screw M4 x 6 - head 6mm
TQ406 Clamp screw M4 x 6 - head 8.5mm
