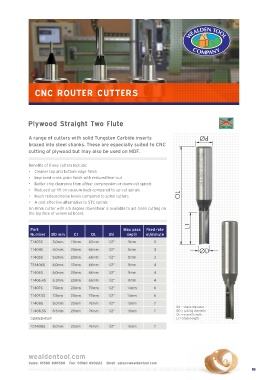

Page 21 - CNC catalogue 2021

CNC ROUTER CUTTERS

Plywood Straight Two Flute

A range of cutters with solid Tungsten Carbide inserts
brazed into steel shanks. These are especially suited to CNC
cutting of plywood but may also be used on MDF.

Benefits of these cutters include:
• Cleaner top and bottom edge finish
• Improved cross grain finish with reduced tear-out
• Better chip clearance than either compression or down-cut spirals
• Reduced up-lift on vacuum beds compared to up-cut spirals
• Much reduced noise levels compared to spiral cutters
• A cost effective alternative to STC spirals
An 8mm cutter with a 5 degree downshear is available to aid clean cutting on
the top face of veneered board.

Part Max pass Feed rate
Number ØD mm C1 OL Ød depth m/minute
T1403S 3.0mm 10mm 63mm 1/2” 3mm 3
T1404S 4.0mm 20mm 66mm 1/2” 5mm 3

T1405S 5.0mm 20mm 66mm 1/2” 5mm 3
TS1406S 6.0mm 12mm 66mm 1/2” 9mm 4
T1406S 6.0mm 20mm 66mm 1/2” 9mm 4
T1406.4S 6.3mm 20mm 66mm 1/2” 9mm 4
T1407S 7.0mm 20mm 70mm 1/2” 14mm 6
T1407.5S 7.5mm 20mm 70mm 1/2” 14mm 6
T1408S 8.0mm 25mm 76mm 1/2” 15mm 7
Ød = shank diameter
T1408.5S 8.5mm 25mm 76mm 1/2” 15mm 7 ØD = cutting diameter
OL = overall length
DOWNSHEAR L1 = blade length
TD1408S 8.0mm 25mm 76mm 1/2” 15mm 7
