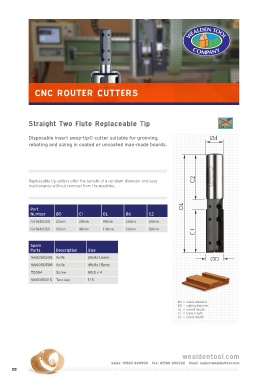

Page 28 - CNC catalogue 2021

CNC ROUTER CUTTERS

Straight Two Flute Replaceable Tip

Disposable insert swop-tip© cutter suitable for grooving, Ød
rebating and sizing in coated or uncoated man-made boards.

Replaceable tip cutters offer the benefit of a constant diameter and easy C2
maintenance without removal from the machine.

Part OL
Number ØD C1 OL Ød C2
NA1842030 20mm 29mm 90mm 20mm 50mm
NA1842050 20mm 49mm 110mm 20mm 50mm
C1

Spare
Parts Description Size
NA0050308 Knife 29x9x1.5mm
ØD
NA0050508 Knife 49x9x1.5mm
TQ354 Screw M3.5 x 4
NA0050015 Torx key T15

Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
C2 = shank length
