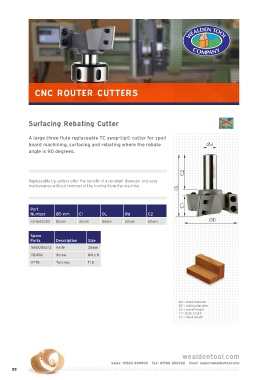

Page 32 - CNC catalogue 2021
P. 32
CNC ROUTER CUTTERS
Surfacing Rebating Cutter
A large three flute replaceable TC swop-tip© cutter for spoil
board machining, surfacing and rebating where the rebate Ød
angle is 90 degrees.
C2
Replaceable tip cutters offer the benefit of a constant diameter and easy
maintenance without removal of the tooling from the machine.
OL
C1
Part
Number ØD mm C1 OL Ød C2
NA1642080 80mm 30mm 85mm 20mm 50mm ØD
Spare
Parts Description Size
NA0005312 Knife 30mm
TQ406 Screw M4 x 6
KT15 Torx key T15
Ød = shank diameter
ØD = cutting diameter
OL = overall length
C1 = blade length
C2 = shank length
